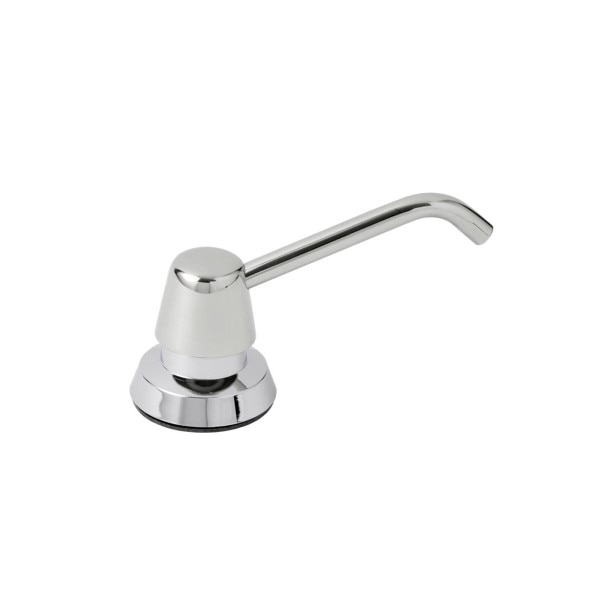

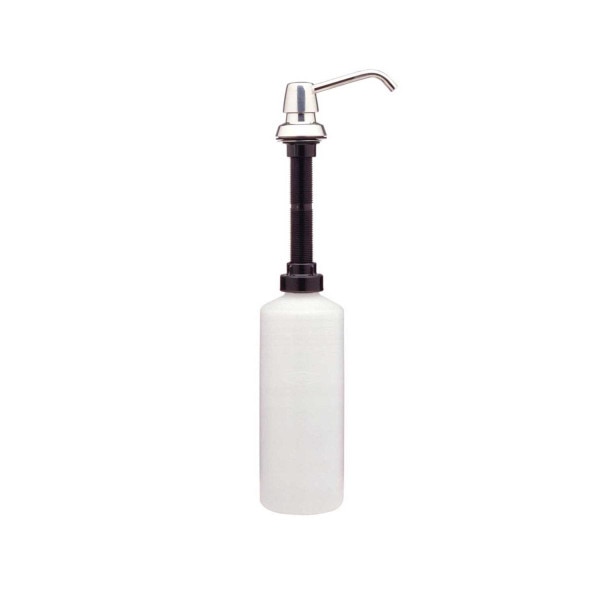

Bobrick B-822 Deck Mount, Manual Top Fill Liquid Soap Dispenser, 4 in. Spout, 34-fl. oz. (1.0-L) Capacity
The Bobrick B-822 corrosion resistant, manual top-fill liquid soap dispenser has vandal-resistant locking cover and free-turning spout. Body and shank are high-impact-resistant ABS plastic with a shatter-resistant polyethylene container., 34-fl. oz. (1.0-L) capacity, 4″ (100mm) spout length, 4″ (100mm) mounting thickness, bright-polished spout. Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose non-iodine hand soaps including liquid and lotion soaps and synthetic detergents. Do not use alcohol based sanitizers.
Type-304 stainless steel with bright polished finish piston, spout, and top cover
Designed for installation in 1'' (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-China lavatories, as well as in countertops adjacent to lavatories
Capacity: 34-fl oz (1.0-L).
Clearance required for container diameter is 3-3/8'' (85mm).
4 in. Spout, 34-fl. oz. (1.0-L) Capacity

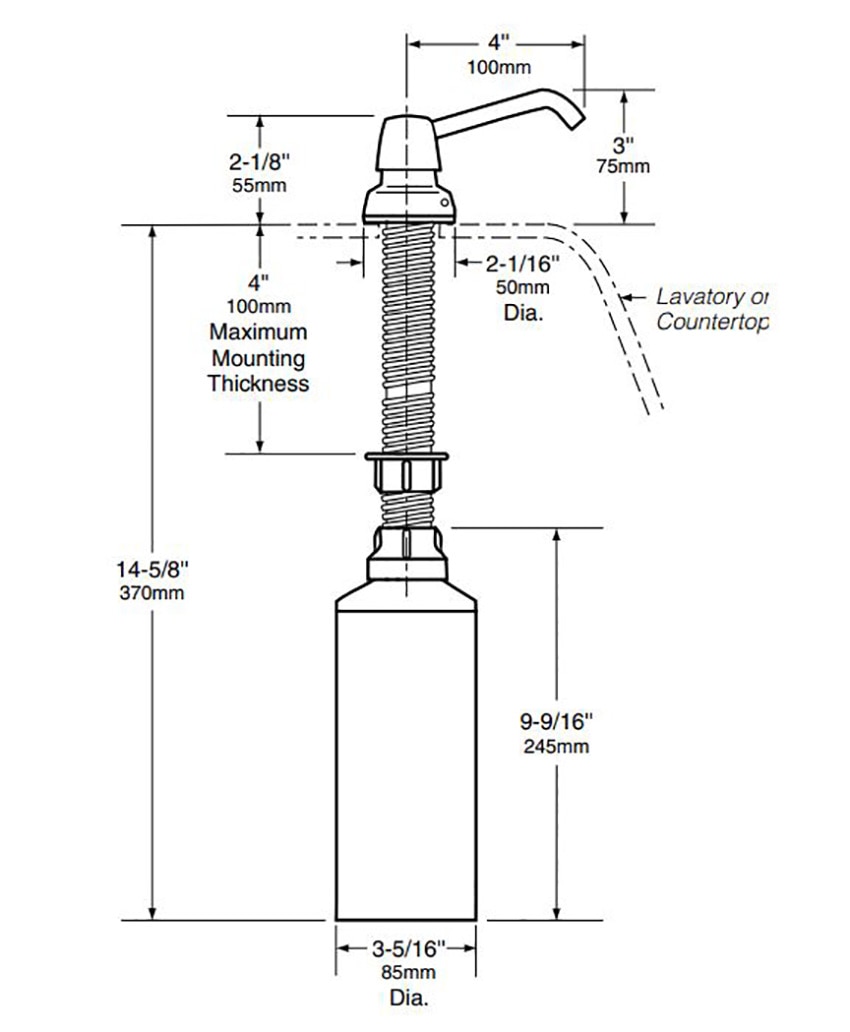

Measurement Diagram:
| Brand: | Bobrick |
| Manufacturer Model No.: | B-822 |
| Mount: | Counter or Lavatory |
| Operation: | Push Button |
| Soap Type: | Liquid |
| Capacity: | 34 oz. |
| Cover Material: | Polished Chrome Plated ABS Plastic |
| ADA Compliant: | Not ADA |
| Overall Dimensions: | Above Counter: 2-1/16" Dia. (4" Spout), 3" Tall Below Counter: 14-5/8" Tall x 3-5/16" Dia. Total: 3-5/16" Wide x 17-5/8" Tall x 5-5/32" Deep |
| Net Weight: | 0.4 lbs. |
| Shipping Dimensions: | 10.5" Length x 5.5" Width x 3.5" Height |
| Shipping Weight: | 0.9 lbs. |
| UPC / GTIN: | 716954004413 |
| Country of Manufacture: | United States |
| Warranty: | 3 Yr. Manufacturer's Limited |
