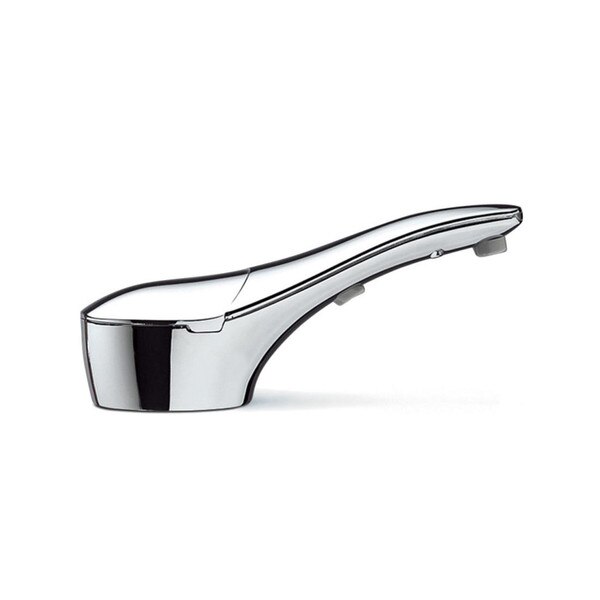

Bobrick B-824 SureFlo 34 oz. Deck Mount Automatic Liquid Soap Dispenser - Polished Chrome - Battery Powered
Automatic, “touch-free” liquid dispenser minimizes cross contamination. Uses universal bulk liquid soaps for significant cost-in-use savings.
This “Top-fill “dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.
Available in a chrome finish for design continuity.
Designers Note: Bobrick Liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including liquid and lotion soap and synthetic detergents.
Acceptable soaps need to have a viscosity in the range of 1cP to 19,000cP (centipoise).
- New installation – Ensure mounting hole is 1-3/8” (35mm) in diameter. Refer to installation instruction with mounting template link below.
- Existing/Retrofit – Ensure mounting hole is 1-3/8” (35mm) in diameter, if necessary, enlarge opening using appropriate hole saw. Refer to installation instruction with mounting template link below.
- Battery Pack requires 4 “D” Cell Batteries (Not included)
- Optional 6V AC Adapter with U.S. Plug available. Order Part No. 3974-57

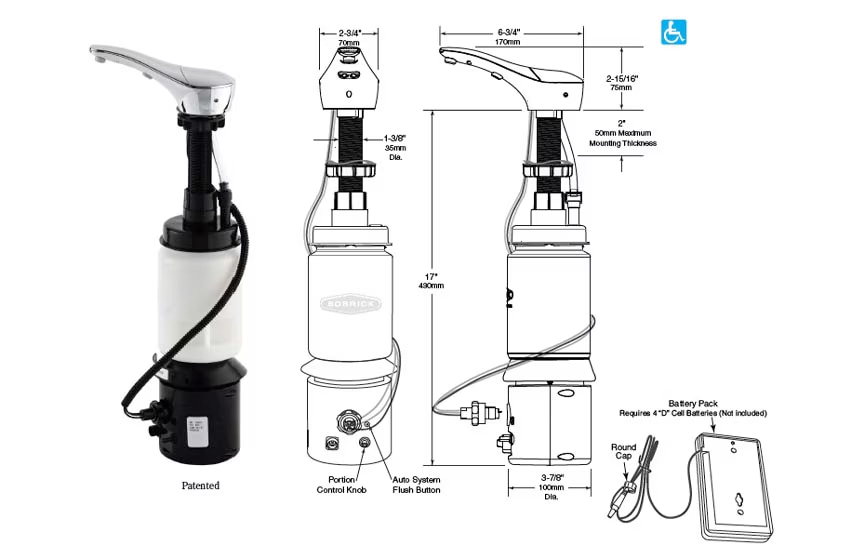

Measurement Diagram:
| Primary Material: | Polished Chrome Plated Die-Cast Zinc |
| Mount: | Lavatory (Sink) |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Capacity: | 34 oz. |
| Power: | 4 Alkaline "D" Cell Batteries (not included) |
| Overall Dimensions: | ABOVE COUNTER: 2-3/4" Width x 2-15/16" Height x 6-3/4" Depth REMAINING: 17" Height x 3-7/8" Width x 5-1/2" Depth (Not including adapter) |
| Rough-In: | COUNTER: 1-3/8" Dia. Mounting hole. Accomodates up to 2" thick counter material. BELOW: 18" Height x 5" Diameter clearance |
| Net Weight: | 3 lbs. |
| Shipping DImensions: | 14-1/4" Length x 14" Width x 6" Height |
| Shipping Weight: | 3.5 lbs. |
| Comments: | Auto System Flush Button Portion Control Knob |

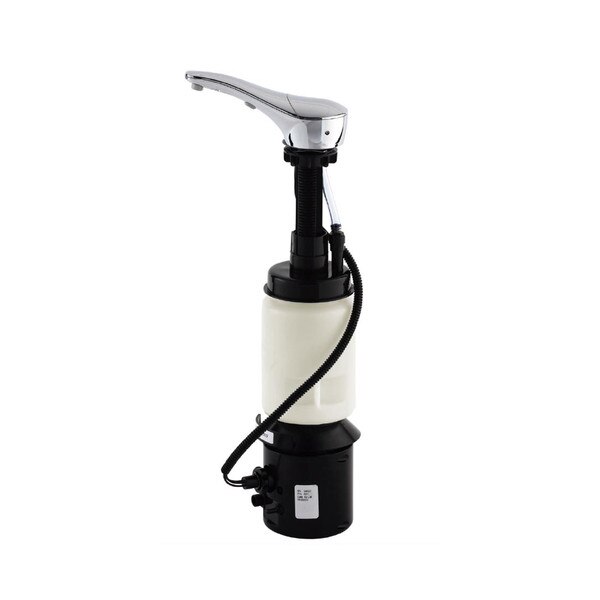

| Comments: | Pair of plastic Fiber Optic cables connects the plastic Activation Lenses to an IR Sensor located on a PC Board in the Bottom Housing. A solid green LED indicates dispense activity and a red blinking LED light indicates low battery life. |
