Bobrick B-830 Commercial Liquid Soap Dispensing System Cabinet for use with Bobrick B-822 Series Dispensers
 | Large-capacity, multi-lavatory soap dispensing system connects up to five existing or new Bobrick B-822 Series Lavatory-Mounted Liquid Soap Dispensers specified and furnished separately |

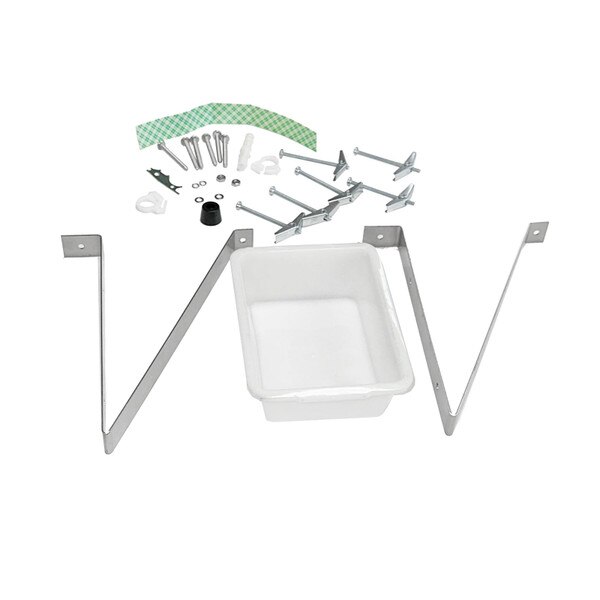

The Bobrick B-830 soap dispensing cabinet system installs beneath the restroom counter providing soap material (sold separately) to dispensers positioned at each countertop sink. Tubing and connectors are included. This soap system cabinet is made of 18-8, type-304, 20-gauge stainless steel and features a cabinet door of attractive satin finish fitted with a door lock, to secure stored product.

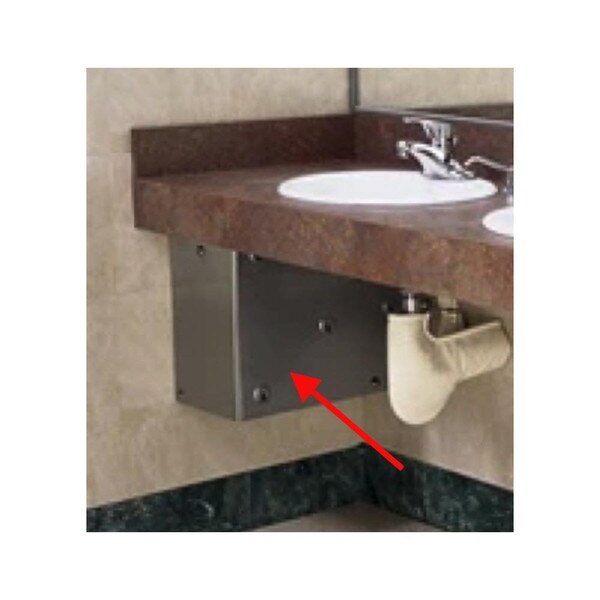

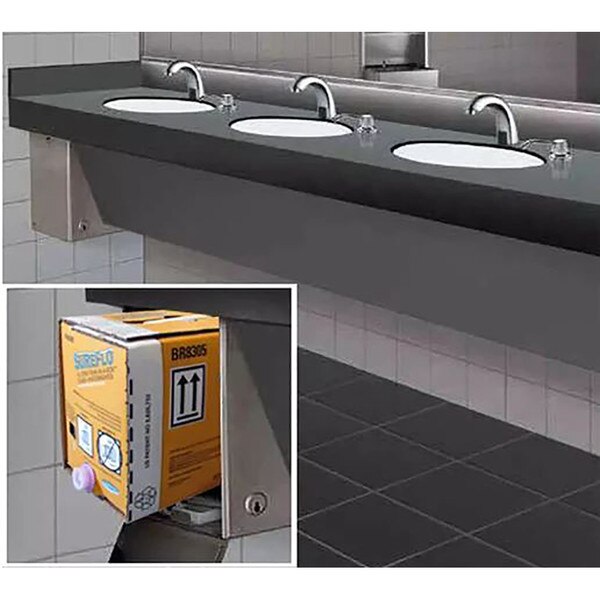

The soap cabinet can be mounted left, right, or rear wall, under the countertop or in a janitor's closet and accommodates a 12-liter SureFlo liquid soap cartridge (sold separately) with either Pink, Gold, or Green Soap that equates to about 13,000 hand washes. After soap tank cartridge empties completely, soap is delivered from a 2-liter reservoir that provides an additional 2,000+ handwashes. The Red Low Soap Indicator light flashes when soap cartridge is empty and system is using reserve supply. The SureFlo Soap Dispensing System eliminates frequent refilling of single dispensers, while reducing maintenance time and cost.
Cabinet 10" W, 15 1⁄4" H in front, 16 1⁄2" H in rear, 18 5⁄8" D (255 x 385–420 x 475mm)
Low soap light notifies staff when a refill is needed
Satin-finished door with a tumbler lock

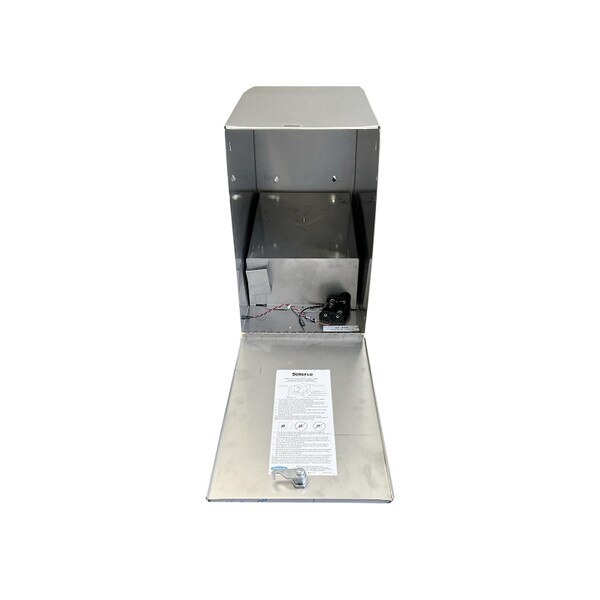

Front-access cabinet for one-minute changeovers
Accommodates (1) 12-liter SureFlo Cartridge (not included)
Overall dimensions: 10 in. W x 18-5/8 in. D x 16-1/2 in. H
| Brand: | Bobrick |
| Manufacturer Model No.: | B-830 |
| Cabinet Dimensions: | 10" W, 15-1⁄4" H in front, 16-1⁄2" H in rear, 18-5⁄8" D (255 x 385–420 x 475mm) |

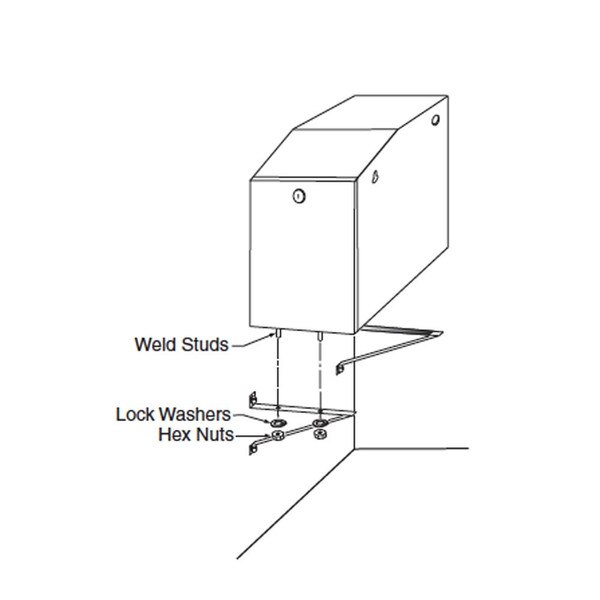

| Installation: | Mounted under lavatory countertop on left or right side walls, or rear wall |
| For Use With: | Bobrick B-822 Series Dispensers |
