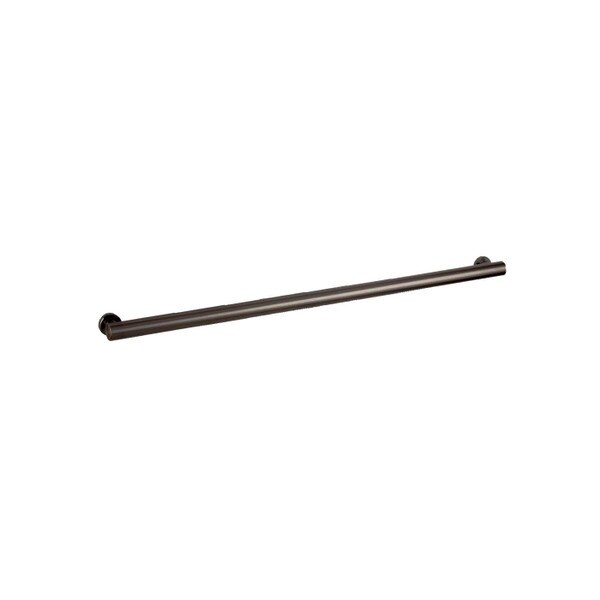

Bobrick B-9806x36.MBLK Fino Collection Matte Black Stainless Steel Grab Bar, 1-1/2" OD, 36" L, Concealed Mount (Snap Flange)
 | The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement. These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. While the color is matte black, the items are made of a stainless steel that has a heavier gauge than other similar restroom accessories. Rather than being sprayed, the stainless is anodized and then brush-painted with the final matte back color. As a result, this craftsman B-9806x36.MBLK grab bar is more expensive than other standard, mass-produced washroom accessories. Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
1½” (38mm) Diameter Stainless Steel Grab Bar with Concealed Flange. ADA/DDA compliant. Modern stylish design. Bobrick grab bars that provide 1-1/2" (38.1mm) clearance from wall can support loads in excess of 1,322lbs (600kgs) if properly installed. Mounting fasteners not included. See mounting kit B-9806-20 (drywall) or B-9806-21 (through bolt type) for Bobrick approved mounting kits.
- 36“ (915mm) Rated Length
- Stainless Steel, Black Powder Coat Finish
Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Type-303, 14-gauge (2mm) Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/2" |
| Rated Width: | Not Applicable |
| Rated Length: | 36" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 1,333 lbs. (weight dependent on anchoring) |
| Bariatric: | Yes |
| Antimicrobial: | No |
| Overall Dimensions: | 38" Wide x 2" Tall x 3" Deep |
| Shipping Dimensions: | 40" Length x 4" Width x 4" Height |
| Shipping Weight: | 6.9 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | B-9806x36.MBLK |
| Country of Manufacture: | United Kingdom |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:

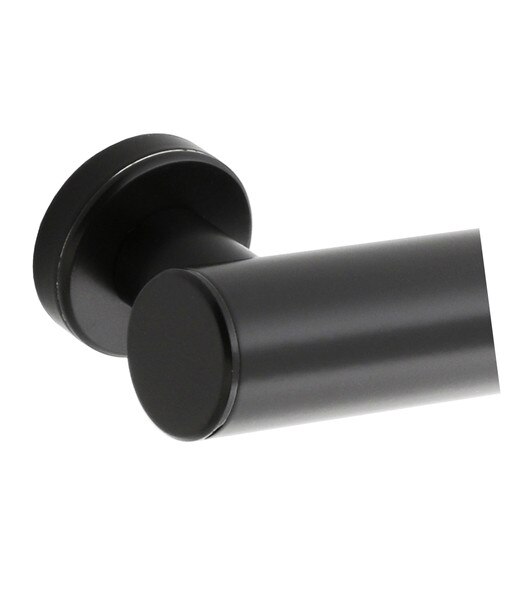

Grab Bar shall be stainless steel with matte black finish. Grab bar shall have type 303, 14-gauge (2mm) stainless steel tubing. 1" outside diameter. Clearance between the grab bar and the wall shall be 1" (38.1mm). Concealed Mounting Flanges shall be 2/5" (10mm) thick, threaded solid stainless steel with satin finish, 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/8" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with with accessible design (including ADAAG in the USA ) for structural strength.
