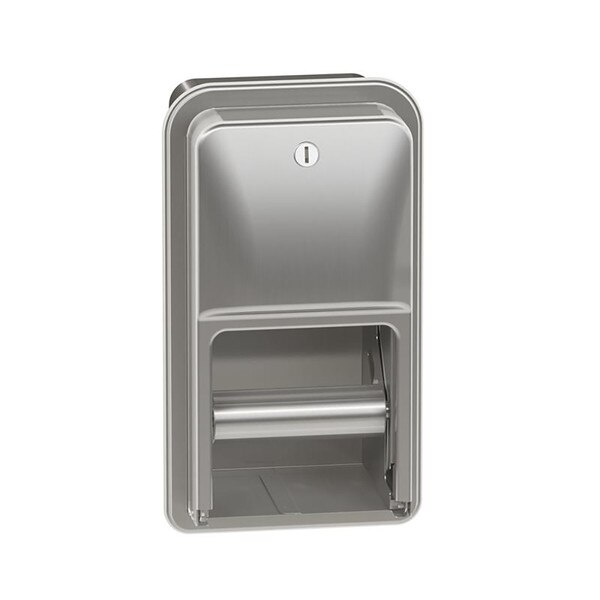

Bradley Diplomat 5A00-000000 Recessed Mount Dual Roll (Reserve Roll) Toilet Paper Dispenser, SS
Bradley Diplomat Series Toilet Tissue Dispenser. 22 gauge stainless steel cabinet with exposed surfaces in architectural satin finish. Designed with unique dual-curve geometry to match the rest of the Diplomat series. Heavy duty welded construction with seamless corners and burr-free edges. 5/8" wide stainless steel flange with 1/4" return.
Key lock service door prevents unauthorized access to spindles and spare roll. Spare roll drops down automatically when first roll is depleted. Tumbler lock keyed like other Bradley units.
Non-controlled delivery. Recess Mounted. Compliant to ADA standards, consult codes for installation requirements.

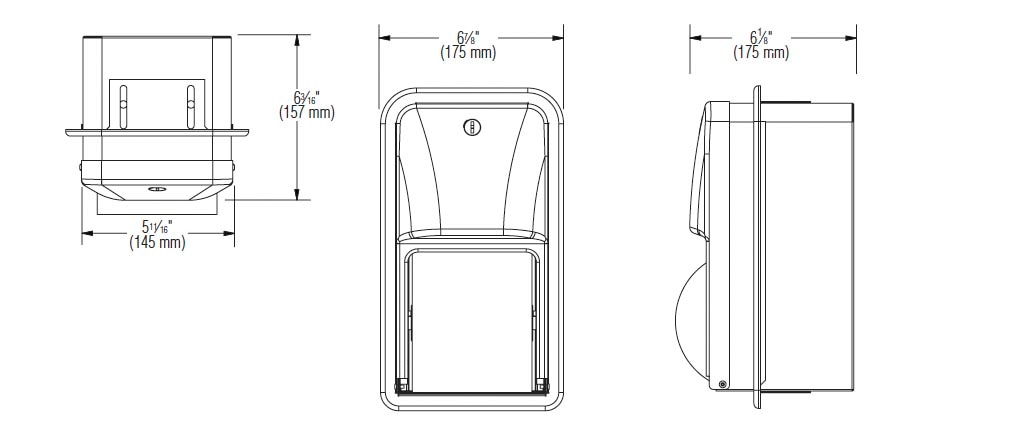

Measurement Diagram:
| Mount: | Wall / Recessed |
| Capacity: | Two (2) Standard Rolls (One in reserve), 4-1/2" Wide x Up to 5" Diameter |
| Overall Dimensions: | 6-7⁄8"W x 12-1⁄8"H x 6-3⁄16"D |
| Net Weight: | 5 lbs. |
| Shipping Dimensions: | 7.06" Width x 6.63" Length x 12.38" Height |
| Shipping Weight: | 6 lbs. |
| UPC / GTIN: | 084241004126 |
| Manufacturing Model No.: | 5A00-000000 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Features: | Locking cabinet to prevent unauthorized access. Theft resistant spindles. |
Warnings:
 | This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
