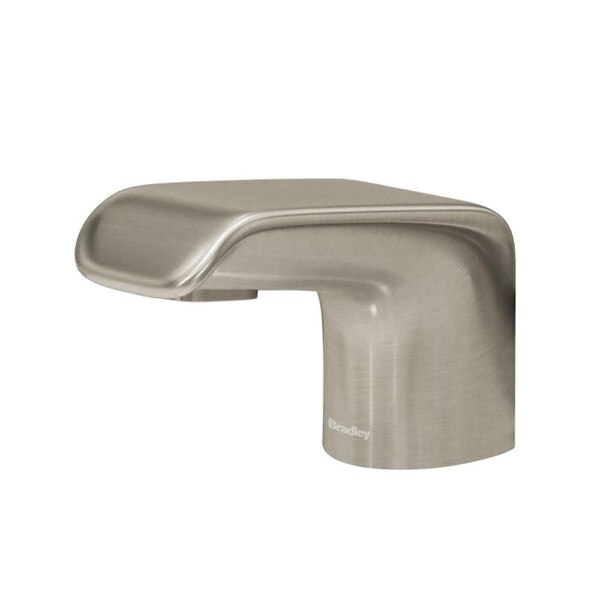

Bradley 6-3500-RLM-BN Verge - Linea - Automatic Deck Mount Soap Dispenser, Liquid, Multi-Feed, Brushed Nickel

Please note this product is the Multi-Feed Soap Dispenser ONLY. You will also need to purchase ONE Multi-Feed Soap Tank which can accommodate up to 6 Multi-Feed units. Power supply must also be purchased for each soap dispenser.

Verge Multi-Feed Soap Dispenser Linea Series. Pairs with Verge Faucet model S53-3500 in Brushed Nickel. This dispenser is for use with A14-033-BN brushed nickel Multi-Feed Tank Assembly system. The 166.5 oz soap tank that can support up to 6 dispensers via a fill port hub on the top of the deck. It is compatible with liquid soap within viscosity range of 100 cps to 5000 cps. Touch-free dual sensor activation optimized to eliminate false activations. Sleek lines and curved edge design in chrome-plated cast brass construction with Brushed Nickel PVD finish. Indicator light at the base of the spout to indicate power, activation and low soap. Vandal-resistant construction including anti-rotational gasket/washer. Complies with ADA guidelines. Certified UL and CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.

• IMPORTANT: No power supply is included with this product. Purchase one of the following separately:
  AC Adapter A14-029 -or- Battery Pack A14-030 -or- AC Splitter A14-031 (which accomodates up to 4 devices)
• Sleek lines and curved-edged design coordinates with Verge™ faucet model S53-3500
• Smart sense system with LED light indicators that show when soap and battery levels are low
• Audible and visual alerts aid the refill process to prevent overfilling and spillage
• Hidden sensors, nozzles and anti-rotation gasket prevent vandalism
•





---

Certifications:



---

Measurement Diagram:

---
