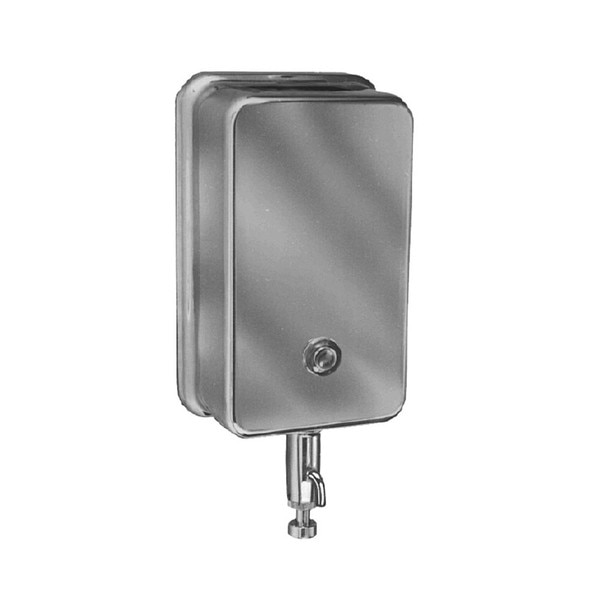

Bradley 655-000000 Surface Mount, Stainless Steel Liquid Soap Dispenser, Vertical Orientation
Push-in valve dispenses measured amount of vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions with less than 5 lbs. of force. Sight gauge indicates refill time. 40 oz. Capacity. Locked filler top opens with special key provided.
Heavy duty 20 gauge stainless steel construction.
- Satin Finish Stainless Steel with Chrome-Plated Brass Valve
- Vandal-resistant filler hole cover and sight gauge
- Secured with lock
- ADA Compliant
Bradley liquid soap valves operate best with any vegetable oil or coconut oil hand soap having a 10−15% soap concentration.
Measurement Diagram:
| Mount: | Wall / Surface |
| Operation: | Push-up pump |
| Soap Type: | Liquid |
| Capacity: | 40 oz. |
| Material: | 20 Gauge Satin Stainless Steel |
| Valve: | Chrome-plated brass housing with ABS plastic and stainless steel mechanism. Requires less than 5 lbs. force to dispense soap. |
| Overall Dimensions: | 4-13/16"W x 8-3/16"H x 2-7/8"D |
| Net Weight: | 1 lbs. |
| Shipping Dimensions: | 12-1/4" Length x 6-3/4" Width x 3-1/4" Height |
| Shipping Weight: | 2 lbs. |
| UPC / GTIN: | 084241005277 |
| Manufacturer Model No.: | 655-000000 |
| Country of Manufacture: | Taiwan |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Features: | ADA Compliant (Requires less than 5 lbs. force to dispense soap) |
Warnings:
 | WARNING: This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Architectural Specifications:
Surface-mounted liquid soap dispenser shall be fabricated of 20 gauge satin finish stainless steel. Dispenser shall have completely concealed mounting, vandal-resistant filler hole cover and sight gauge. Push-up corrosion-resistant liquid soap valve. Requires less than 5 lbs. of force to dispense soap.
