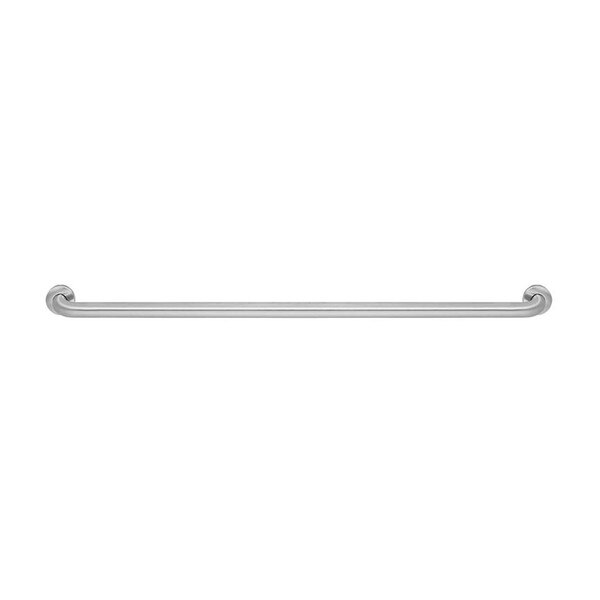

Bradley 8120-001480 Stainless Steel Grab Bar, Straight, 1-1/2" O.D., 48" L, Concealed Mnt, Smooth
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |

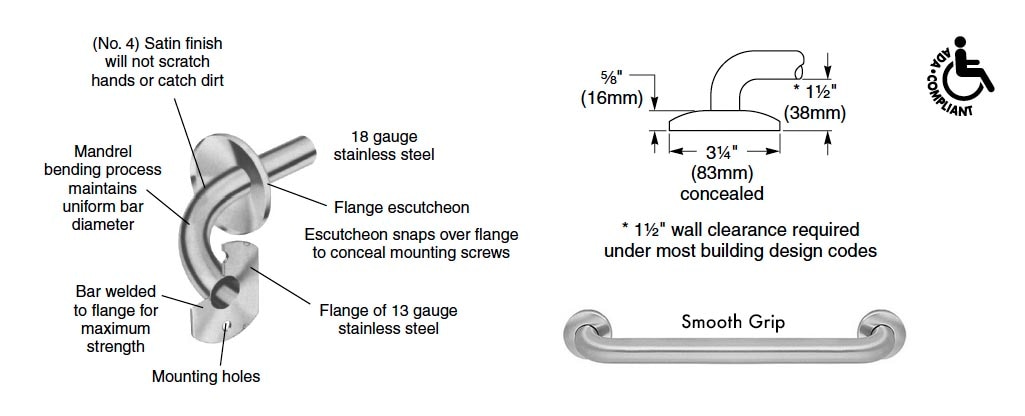

Top quality Bradley grab bar designed for commercial restroom applications. Escutcheon made from one-piece drawn construction with exposed surfaces in architectural satin finish. Escutcheon snaps over flange to conceal mounting screws. Architectural satin finish. 18 gauge stainless steel tubing.
Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Grab Bar is 48 inches long. Wall clearance is 1-1/2 inches. When properly mounted, grab bar meets or exceeds the requirements of ANSI A117.1, ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG).

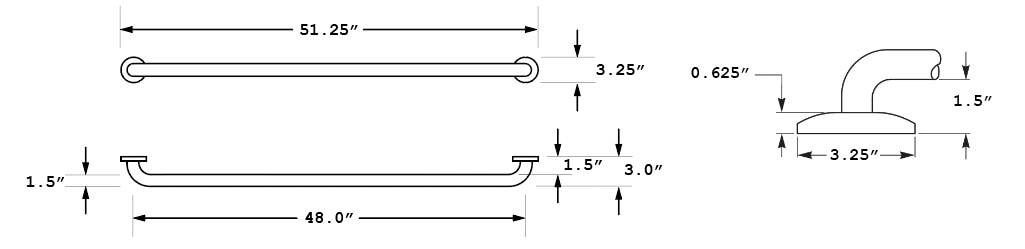

Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/2" |
| Rated Width: | Not Applicable |
| Rated Length: | 48" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 51-1/4" Wide x 3-1/4" Tall x 3" Deep |
| Shipping Dimensions: | 52" Length x 4" Width x 4" Height |
| Shipping Weight: | 5.6 lbs. |
| UPC / GTIN: | 084241007066 |
| Manufacturer Model No.: | 8120-001480 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
