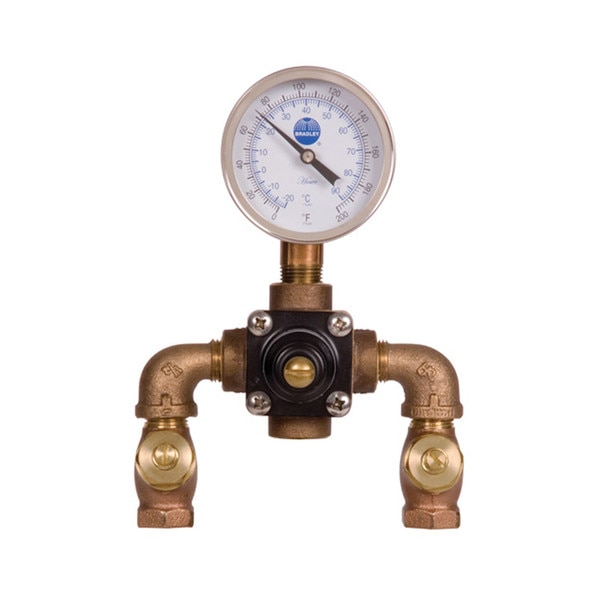

Bradley S19-2000 Navigator Thermostatic Mixing Valve
Bradley S19-2000 Navigator EFX8 Thermostatic Mixing Valve 7GPM for Emergency Fixtures
- 7 GPM at 30 PSI
- Single Valve Design
- Bradley - Only Manufacturer of Emergency Fixtures and Valves
- Meets ANSI/ISEA Standard Z358.1
- Reliable Liquid Filled Thermostat with 10 year warranty
- Factory Pre-Set at 85°F
- Adjustable Temperature Range of 65°F - 95°F
- Universal Mounting Capability
- Positive Shut-off of Hot Supply when Cold Supply is Lost
- Built-In Cold Water Bypass Assures Cold Flow
- Easily Installed and Serviced
- Dial Thermometer
- Rough Bronze or Chrome Plated Finish
- ASSE 1071 & cUPC Certified
| Overall Dimensions: | 6-1/4" Wide x 8-3/8" Tall x 5-1/2" Deep |
| Max Operating Pressure: | 125 PSI |
| Max Inlet Temperature: | 180 Degrees (F) |
| Flow: | 7.3 GPH at 30 PSI |
| Finish: | Rough Brass |
| Net Weight: | 4.2 lbs. |
| Shipping Dimensions: | 10" Length x 7" Width x 6" Height |
| Shipping Weight: | 4.7 lbs. |
| UPC / GTIN: | 084241023653 |
| Manufacturer Model No.: | S19-2000 |
| Warranty: | 10 Yr. Manufacturer's Warranty |
