Bobrick B-845 Deck Mount Automatic Foaming Soap Dispenser, Brushed Nickel, 34 oz.
Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction. Polished brass finish. Uses universal bulk foam soaps for significant cost-in-use savings. Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.
Available in five different finishes (Polished Chrome, Polished Nickel, Brushed Nickel, Polished Brass and Matte Black).
Automatic faucet available in a matching finish (with adjustable time-out duration’s, line purging, and adaptable sensor range).

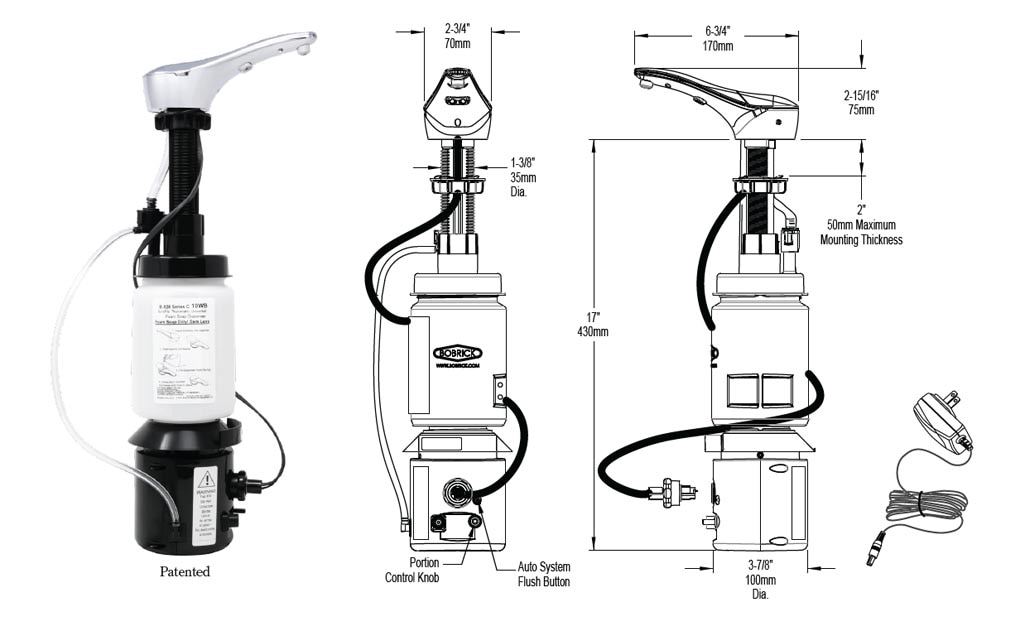

Measurement Diagram:
Alternatives:
Looking for the matching faucet? See Bradley B-8875 Designer Series Brushed Nickel Faucet.
| Brand: | Designer Series |
| Manufacturer Model No.: | B-845 |
| Mount: | Lavatory (Sink) |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Color / Finish: | Brushed Nickel |
| Primary Material: | Die-cast zinc |
| Capacity: | 34 fl. oz. |
| Soap Type: | Foaming |
| Power: | 6V AC Adapter with U.S. Plug comes standard |
| Overall Dimensions: | 19-7/8" Tall x 3-7/8" Wide x 6-3/4" Deep Spout: 2-3/4" Wide x 2-15/16" Tall x 6-3/4" Deep |
| Rough-In: | 1-3/8" Dia. Mounting hole. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required. |
| Shipping Dimensions: | 14.3" Length x 14" Width x 6" Height |
| Shipping Weight: | 3.5 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | CHN |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Designers Note: Unit is not compatible with above the counter sink rims greater than 1-1/2" W x 1" H (25 x 40mm) or 2-1/2" W x 1/2" H (65 x 12.7mm). Caution: Sink rim must not come into contact with activation area. For more information refer to Form No.824-307 Mounting Template in the Installation Instructions |
Architectural Specifications:
Designer Series Counter-Mounted Automatic Foam Soap Dispenser shall dispense commercially marketed all-purpose bulk foam hand soaps, do not use iodine based or alcohol based soaps or sanitizers. Spout assembly shall be die cast zinc, with one of five finishes. Stem is integrated with spout and shall be Delrin plastic and accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show unit is ready for activation. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Unit equipped with unique two stage foam mixing chambers. Air pump delivers air to foam mixer housing, combining foam soap solution and air to form a preliminary mixture of foam. Soap is then pumped through spout where a second chamber in the nozzle tip houses a mixer cartridge with nylon mesh which delivers a rich lather of foam soap. Control Dial shall allow field adjustment of foam texture. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with 6V AC adapter.
Product Group Variations:
How to install your new Designer Series soap dispenser by Bobrick. (Covers B-858, as well as B-84_ and B85_ dispensers.)
Maintenance guidelines to keep your Designer Series Soap Dispenser working flawlessly.
