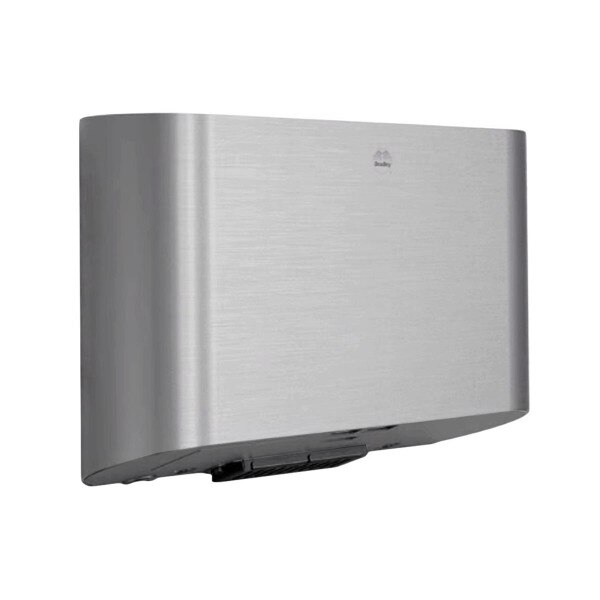

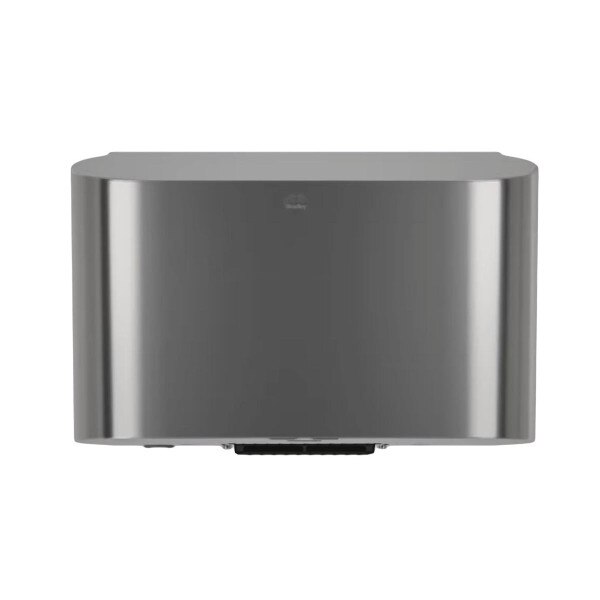

Bradley Elvari 2B4-2110000 High Speed, Automatic, Stainless Steel Hand Dryer, 240V, Satin Finish
This hand dryer is Part of Bradley's unique upscale, Elvari collection. It is quick, with a drying time of 10-15 seconds and includes a new filter system with a 3M Filtrete, Merv 12 filter and activated charcoal pass through for clean fresh air.
Expertly crafted using advanced weld construction from 20 gauge 300 series stainless steel, and finished with a #3 architectural satin texture. Combined with other Elvari fixtures, It's clean lines and smooth geometric design will create a clean contemporary look for your washroom.
220-240V, 50/60Hz input. 3.8–4.2A (switchable heat setting)
Expertly crafted using advanced weld construction from 20 gauge 300 series stainless steel, and finished with a #3 architectural satin texture. Combined with other Elvari fixtures, It's clean lines and smooth geometric design will create a clean contemporary look for your washroom.
- High quality and modern style complements other Elvari™ products
- Includes a 3M filtrete with a MERV rating of 12 and filters 80%–89.9% of 1.0–3.0 micron particles and 90% or greater of 3.0–10.0 micron particles
- Includes a carbon filter for filtering and trapping of volatile organic compounds (VOCs), gases, and odors
- Adjustable sensing distance and air speed for customized performance
- Dual air outlets resulting in enhanced drying efficiency and quieter operation
- ADA without recessing
Measurement Diagram:
| Type: | High Speed ADA Hand Dryer |
| Mount: | Wall Mount / Surface Mount |
| Cover: | Stainless Steel, Satin Finish |
| Operation: | Automatic (Infra-Red) Touchless |
| Nozzle: | Dual grid outlets |
| Power: | 220-240V, 3.8–4.2A (Adjustable motor speed & heat) |
| Motor: | Brush Type, Dual Ball Bearings |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing |
| Motor Speed: | 16,000–29,000 RPM |
| Heating Element: | 325–500W, Adjustable |
| Filter: | 3M filtrete with a MERV rating of 12 and filters 80%–89.9% of 1.0–3.0 micron particles and 90% or greater of 3.0–10.0 micron particles and carbon filter for filtering and trapping of volatile organic compounds (VOCs), gases, and odors |
| IP Rating: | IP24 (drip proof) |
| Noise Level: | 72–78 dB (adjustable) |
| Overall Dimensions: | 8.5" H x 12.5" W x 3.9" D |
| Shipping Dimensions: | 16" Length x 12" Width x 6" Height |
| Shipping Weight: | 9.2 |
| UPC / GTIN: | 084241033713 |
| Manufacturer Model No.: | 2B4-2114900 |
| Warranty: | Sensors - one (1) year Motor Brushes - three (3) years All Other Components - ten (10) years |
| Country of Manufacture: | Taiwan |
Warnings:
 | WARNING: This product can expose you to chemicals including Nickel compound, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Architectural Specifications:
ADA slim profile, surface-mounted hand dryer shall be constructed from 20‑gauge, 300 series stainless steel in a brushed #3 satin finish or optional electrocoat finishes. Welded mounting frame for added strength. Hand dryer shall operate at 72–78 dB with an air speed of 70–82 m/s. Hand dryer shall be equipped with a carbon filter set, as well as a 3M filtrete filter set. Dryer shall have separate part numbers based on operating voltage of 110–120VAC and 220–240VAC input. Dryer shall have an adjustable motor wattage from 325–500W. Dryer shall have a dedicated circuit with a minimum of 15A and must be properly grounded. Dryer shall be equipped with motor thermal protection, and heater thermal protection.
