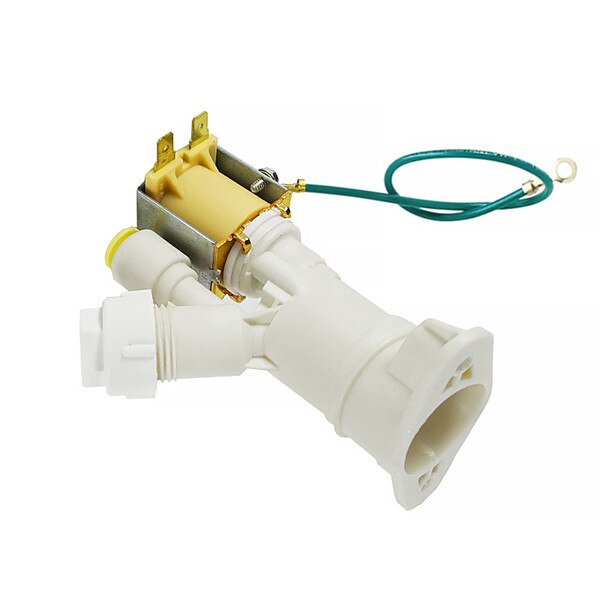

Elkay Part 36248C Solenoid Valve (Drinking Fountain) 220-240V
Elkay OEM replacement 220-240V solenoid valve for EZ and LZ drinking fountains (and coolers). Also works with Halsey Taylor HTV fountains.
If your drinking fountain doesn't dispense water when you press the buttons, or only dispenses a weak stream, the solenoid valve is a likely cause.
This part is intended for export use (European countries or those with native 230V/50Hz power). For the US version (110-120V), see Elkay part LKP-98466C.
NOTE: This wiill work on the fountain/cooler portion of the fountain. It will not work on the bottle filler if one is present. For that part, see LKP-1000004574
| Brand: | Elkay |
| Manufacturer Model No.: | 36248C |
| Type: | Solenoid valve |
| Compatibility: | Drinking fountain portion of Elkay EZ & LZ fountains and Halsey Taylor HTV fountains. |
| Included: | Solenoid valve assembly |
| Overall Dimensions: | Approximately 3-1/4" Wide x 4-1/4" Tall x 2-3/4" Deep |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lb. |
| UPC / GTIN: | 094902441795 |
| Country of Manufacture: | Mexico |
| Additional Comments: | For overseas use. Other numbers which may be present on the label, includ: S-45RV, K-76894, 008C19 |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
