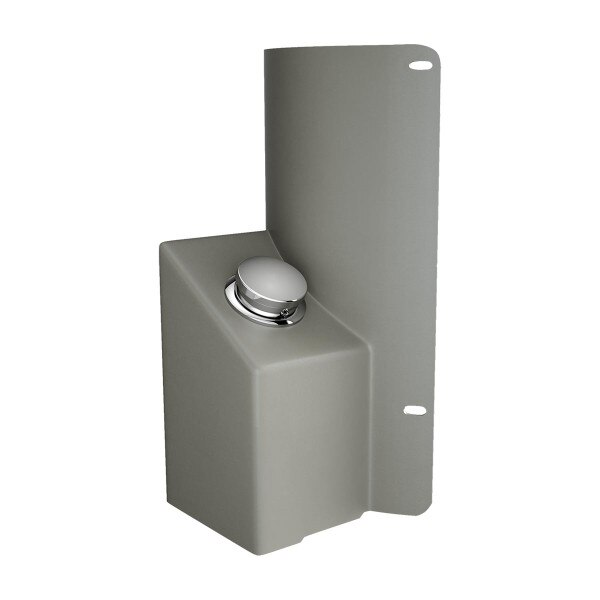

Elkay 4481FPGRY Outdoor Bottle Filler Foot Pedal Accessory, Gray

ELKAY4481FP Foot Pedal Retrofit Kit for Adding Hands-Free Operation to Outdoor Bottle Fillers

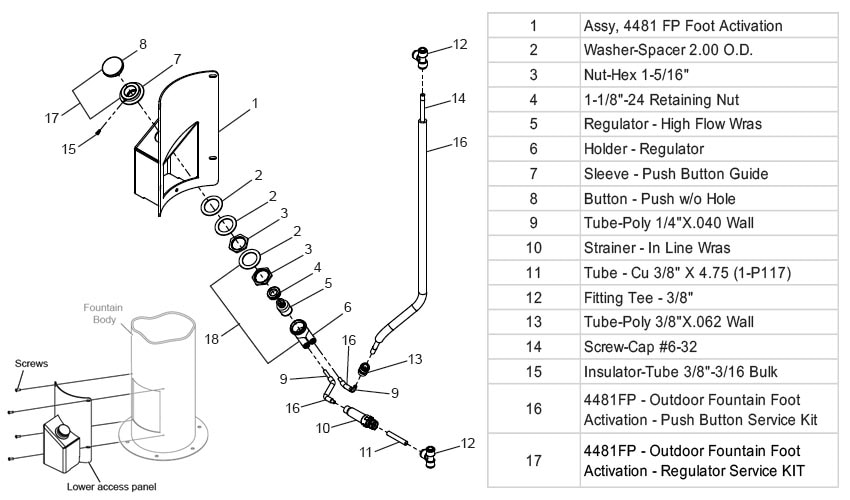

The Elkay 4481FP Foot Pedal converts an Elkay or Halsey Taylor push button outdoor bottle filler to hands free operation. Comes in matching colors for existing LK4400 series Bottle Fillers. Same tough finish and screws resist stains and corrosion.

Compatible with:

Elkay Series: LK4400BF, LK4420BF1U, LK4420BF1UDB

Halsey Taylor: 4400BF, 4420BF1U, 4420BF1UDB


Does NOT work with: fountains with "FRK" (freeze resistant valves). Controls only the bottle filler portion of two or three station fountains.

• Convenient foot activation for healthier, hands-free bottle filling.
• Activates bottle filler only and will not activate attached fountains. Pedal will not deactivate the bottle filler push button.
• Attaches to lower access panel opening for secure connection and easy installation.
• Powder-coated exterior over Type 316 stainless steel provides protection from the elements.

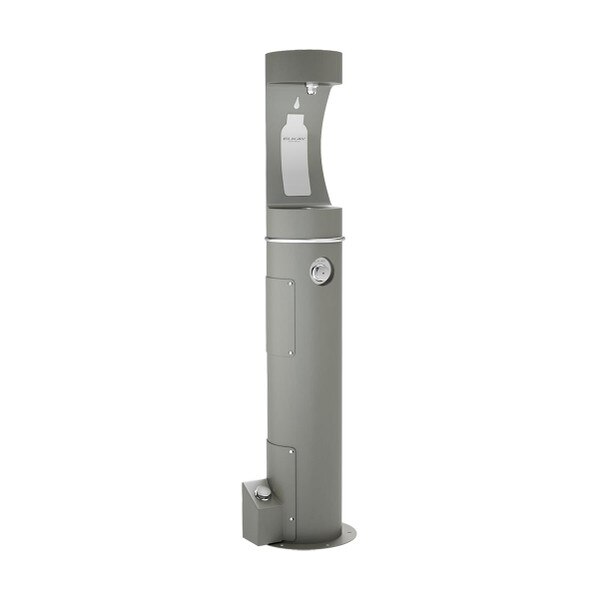

• Available in 12 finishes to coordinate with outdoor tubular bottle filling stations.
• Compatible with select outdoor tubular bottle filling stations.

---

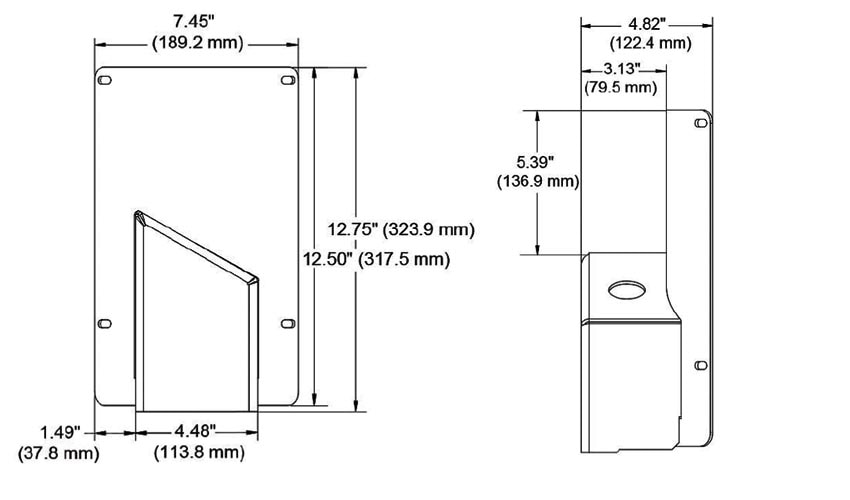

Measurement Diagram:

---

---
