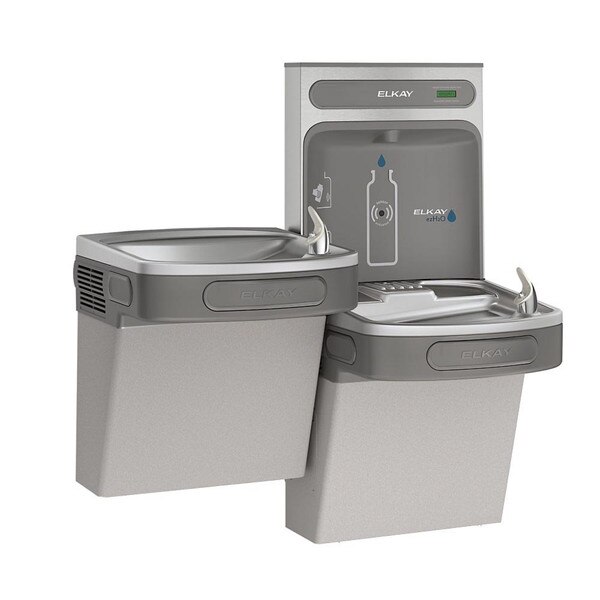

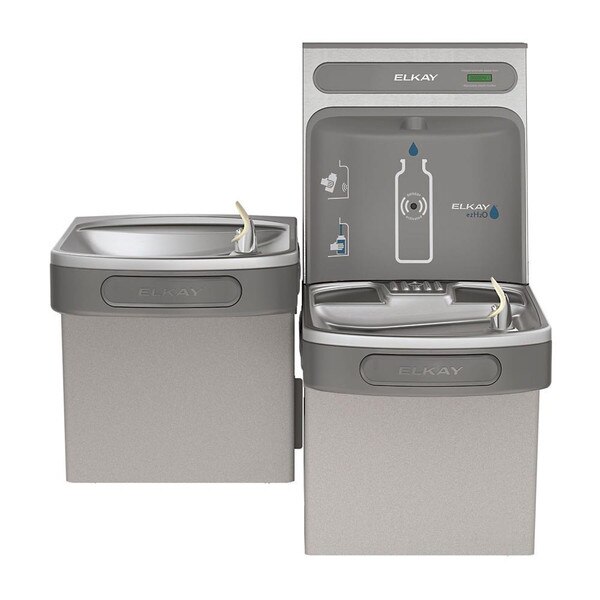

Elkay EZSTLDDWSLK ezH2O Bottle Filling Station & Versatile Bi-Level Drinking Fountain, Light Gray (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Complete cooler and bottle filling station in a consolidated space saving ADA compliant design.
NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms. Rated for indoor use.
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- Fill rate is 1.5 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.

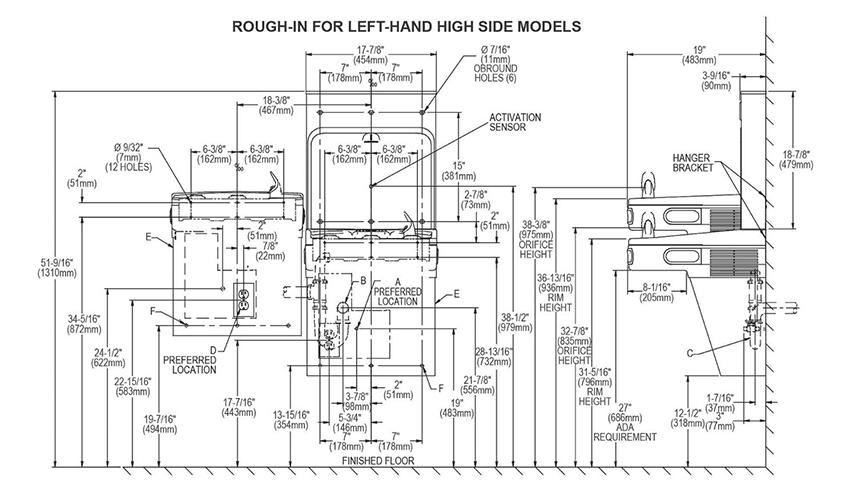

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 44-1/8" Tall x 36-3/4" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 34-3/16" Height |
| Shipping Weight: | 46 lbs. |
| UPC / GTIN: | 94902746029 |
| Manufacturer Model No.: | EZSTLDDWSLK |
| Included: | Water Cooler (EZSTLDDWSLC) Bottle Filler (EZWSR) |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler, Non-Filtered Non-Refrigerated Light Gray. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements
Specifications for EZSTLDDWSLK Click to download spec sheet for Elkay EZSTLDDWSLK
Manual for EZSTLDDWSLK Click to download manual for Elkay EZSTLDDWSLK
