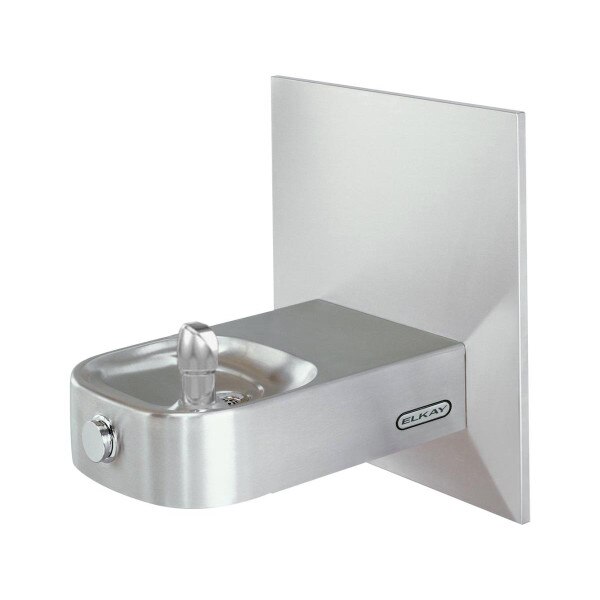

Elkay ECDFPW314FPK Slimline Soft Sides, Wall-mount Drinking Fountain, Frost Resist (Non-refrigerated, Non-filtered)
 | No power required! IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Soft Sides® Slimline® architectural drinking fountains feature softly rounded corners and a contoured basin designed to provide a splash-resistant surface. This slim profile model is ideal for children's use installations. Constructed of #18 gauge, type 304, stainless steel polished to a satin finish.
Frost resistant valve system and stainless steel construction ideal for outdoor locations.

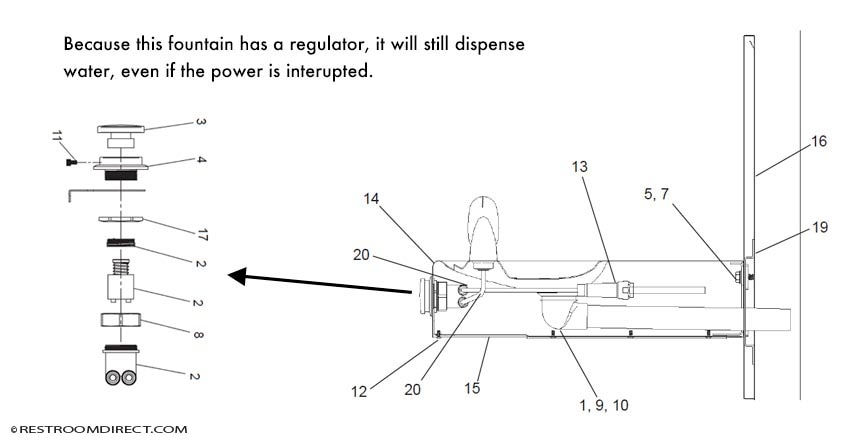

Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Bottom cover plate conceals plumbing and internal components.
Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
1 Year Elkay Manufacturer's Limited Warranty
Certifications:

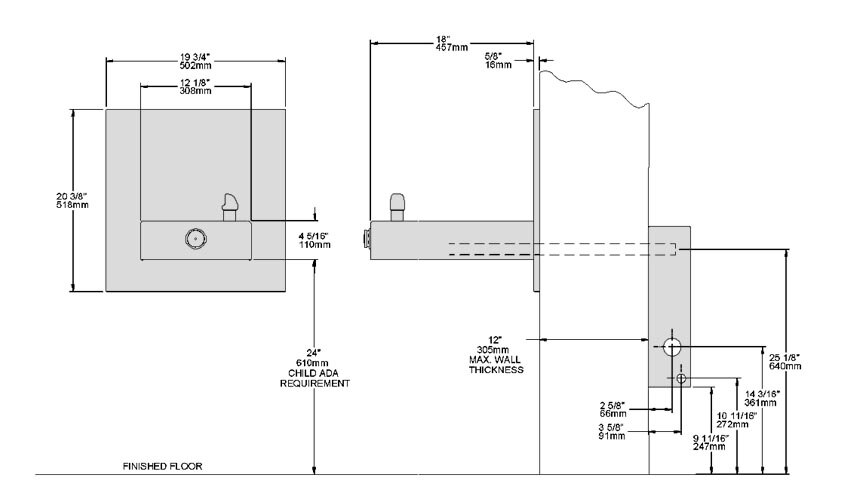

Measurement Diagram:
Alternatives:
Don't need frost resistance? Try the ECDFPWVR314C .
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 20-3/8" Tall x 19-3/4" Width x 18-3/4" Deep (Fountain Only) |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 36" Length x 20" Width x 6" Height Box 2: 28-11/16" Length x 21" Width x 16" Height |
| Shipping Weight: | 41 lbs. |
| UPC / GTIN: | 94902358345 |
| Manufacturer Model No.: | ECDFPW314FPK |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Frost Resistant |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Slimline® Soft Sides® Fountain Non-Filtered Non-Refrigerated, Freeze Resistant Stainless. Features shall include Freeze Resistant. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
