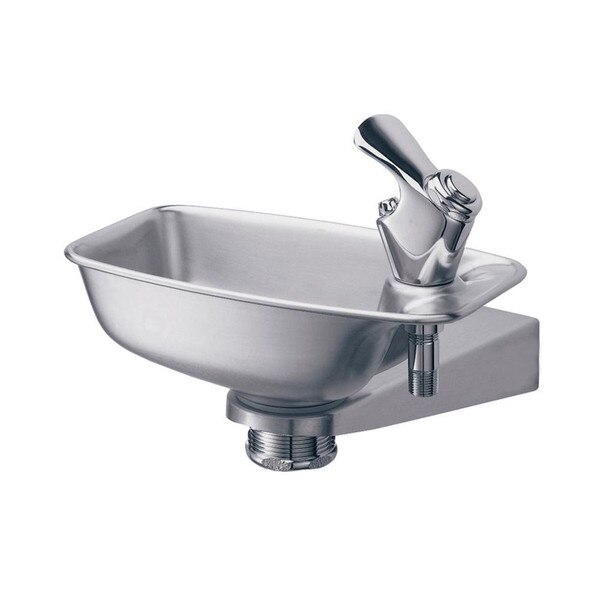

Elkay EDF15R Bracket Fountain (Non-refrigerated, Non-filtered)
 | IMPORTANT ! ! IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Sturdy and dependable, the EDF15R is perfect for indoor utility areas or outdoor athletic facilities.
Stainless steel, nickel, and chrome construction will provide years of service. Basin has rounded corners and bubbler hood for additional safety in active areas. Easily accessible chrome-plated strainer for hassle-free maintenance.
All metal construction and 14 Gauge heavy duty steel mounting bracket discourage vandalism.
- Stainless steel bracket provides mounting to wall.
- 300 Series stainless steel basin resists corrosion.
- Equipped with one-piece, chrome-plated push-button bubbler.
- Mechanical bubbler continues to provide water when electrical service is interrupted.
- Includes removable chrome-plated strainer.
- Rated for indoor or outdoor use.
Certifications:

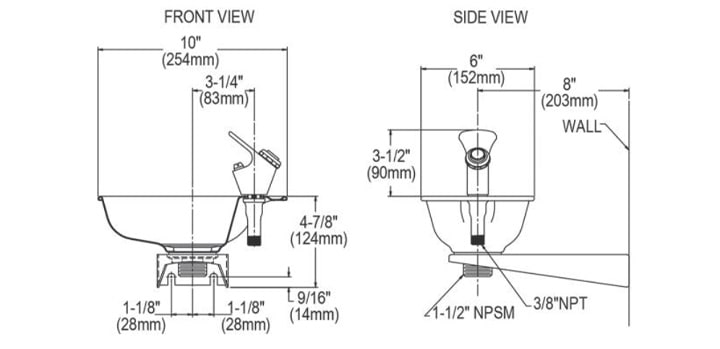

Measurement Diagram:
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 7-3/8" Tall x 10" Wide x 11-3/4" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 11-3/4" Height x 8-15/16" Width x 12-3/8" Length |
| Shipping Weight: | 5 lbs. |
| UPC / GTIN: | 94902400747 |
| Manufacturer Model No.: | EDF15R |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Bracket Fountain, Non-Filtered Non-Refrigerated Stainless. Furnished with Push Button bubbler. Mechanical Top Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
