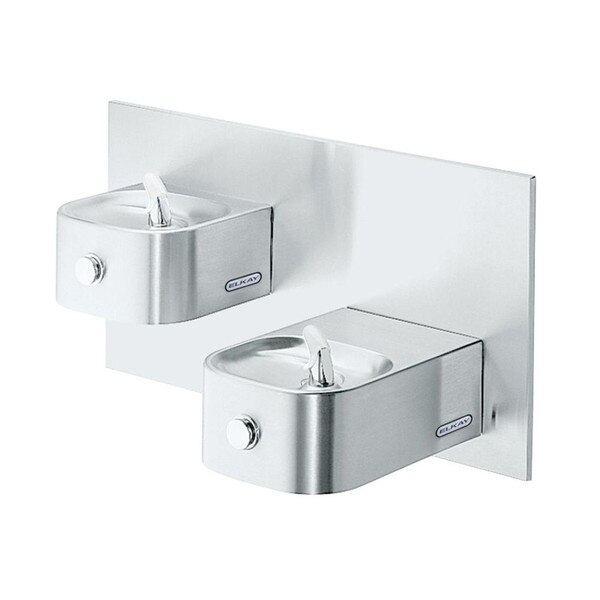

Elkay EDFP217C Soft Sides Bi-Level Fountain (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. Please note a mounting frame is NOT included with this unit and may be necessary if you lack a studded wall that can support a downforce of 300 lbs. For in wall mount see MPW200 - Install the fountain to the back panel and wall using (4) 5/16 “ x 6” long threaded rods, washers, and nuts (provided). Tighten securely. For surface mount see MP20 - Install the fountain to the back panel using (4) 5/16" x 1.00" long bolts and washers (provided) thru holes in back panel. Tighten securely. (NOTE: Fasteners for securing Wall Plate Assy. to the the wall are not provided) |
A part of Elkay's ADA Barrier Free Series, these wall mount water fountains are commercial quality, vandal resistant and ADA compliant.
The sleek stainless steel look with rounded edges is also safer than the sharp edges sometimes found on traditional fountains. A contoured basin minimizes splashing.
The Elkay patented FlexiGuard safety bubbler helps prevent accidental mouth injuries.
Vandal resistant bottom cover plates prevent tampering with exposed plumbing. Certified no-lead waterways.
Contoured fountain provides an attractive and safe product.
Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Stainless steel finish is corrosion resistant and attractive.
Bottom cover plate conceals plumbing and internal components.
Rated for indoor or outdoor use.
Certifications:

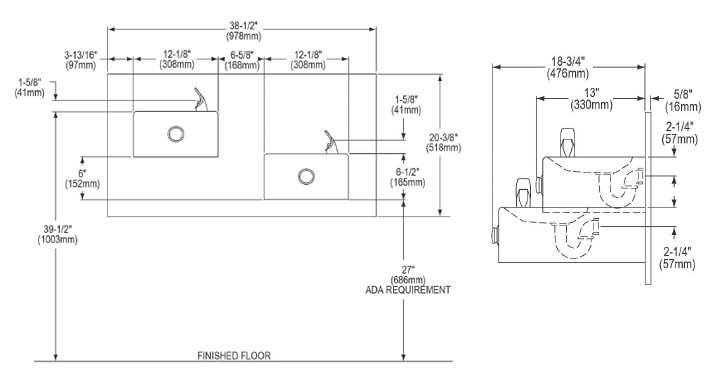

Measurement Diagram:
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 20-3/8" Tall x 38-1/2" Width x 19-3/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 42" Length x 26" Width x 17" Height |
| Shipping Weight: | 42 lbs. |
| UPC / GTIN: | 94902173092 |
| Manufacturer Model No.: | EDFP217C |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Soft Sides® Bi-Level Fountain Non-Filtered Non-Refrigerated, Stainless. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
