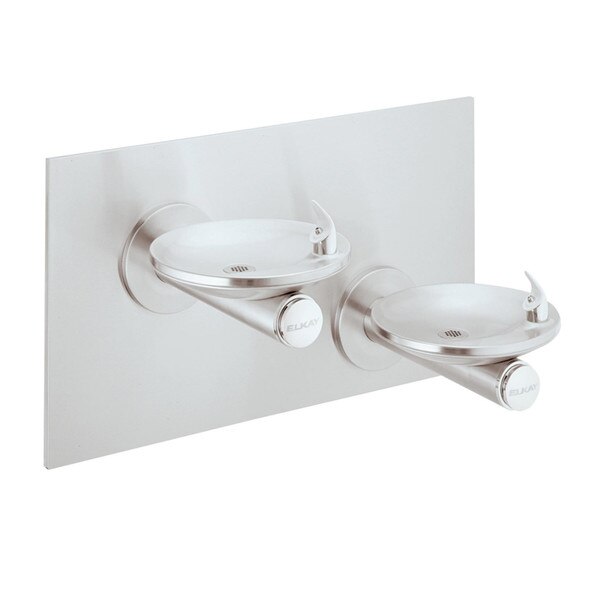

Elkay EDFPBM117C SwirlFlo Architectural Drinking Fountain, Bi-level (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
A new part of Elkay's ADA Barrier Free Series, the Swirlflo wallmount water fountains are commercial quality, vandal resistant and ADA compliant. The sleek stainless steel bowl and pedestal are also safer than the sharp edges sometimes found on traditional fountains.
- Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
- Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Stainless steel finish is corrosion resistant and attractive.
- One-piece back panel eliminates unsightly seams.
- Rated for indoor or outdoor use.
Certifications:

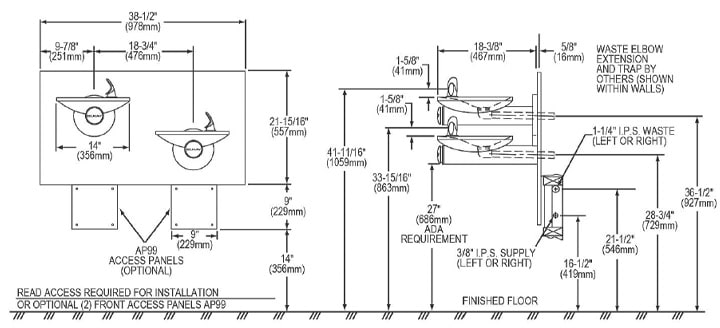

Measurement Diagram:
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 21-15/16" Tall x 38-1/2" Width x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 40-15/16" Length x 28-7/8" Width x 15-11/16" Height |
| Shipping Weight: | 72 lbs. |
| UPC / GTIN: | 94902328362 |
| Manufacturer Model No.: | EDFPBM117C |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay SwirlFlo® Bi-Level Fountain Non-Filtered Non-Refrigerated, Stainless. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
