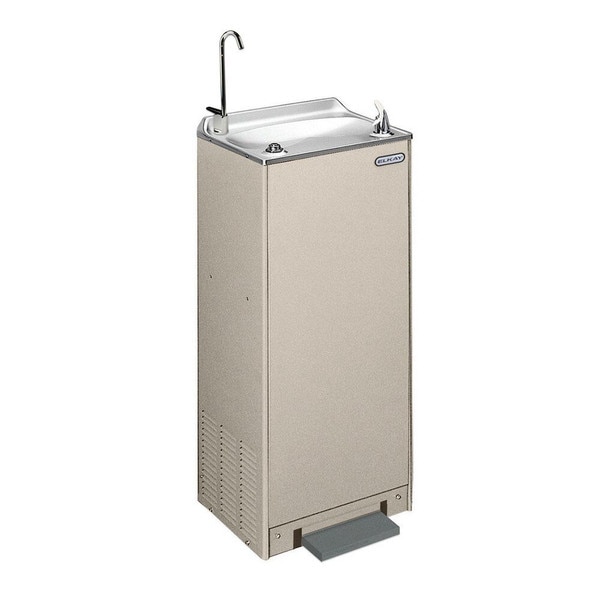

Elkay EFA8L1110P Foot Pedal Operated, Refrigerated Water Fountain, 8 GPH, Lt Gray
 | Includes Foot Pedal Operation and Glass Filler! |
These Elkay floor mount, free standing units conserve space with a small footprint as well as a cabinet and hermetically sealed combination tank type that allow flush to wall installation.
- Traditional floor mount design allows for free-standing or wall backed installations.
- Includes LK1110 Glass Filler
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Vinyl clad finish is durable and attractive.
- Foot pedal activation for hands-free use.
- Rated for indoor use.
Certifications:

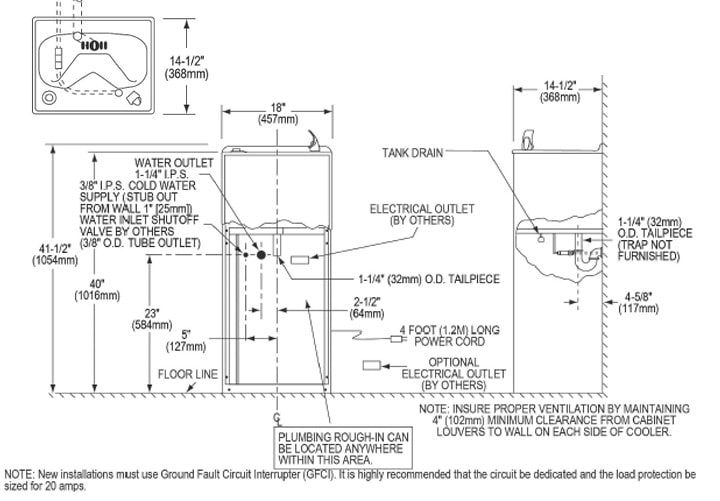

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain, one (1) J-Neck Glass Filler |
| Mount: | Floor or Free Standing |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 41-1/2" Tall x 18" Wide x 14-1/2" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 46-1/2" Height x 16-13/16" Width x 20-5/16" Length |
| Shipping Weight: | 75 lbs. |
| UPC / GTIN: | 94902367187 |
| Manufacturer Model No.: | EFA8L1110P |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Legacy Floor Mount Cooler with Foot Pedal and Glass Filler Non-filtered Refrigerated 8 GPH Glass Filler Prepped Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Foot Pedal Activation, Glass Filler Included. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Top Bubbler Button activation. Product shall be Floor Mount/Freestanding, for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
