Elkay EHWM17C Slimline, Soft Sides Bi-level Water Fountain (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Soft Sides® Slimline® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface. This slim profile model is ideal for children's use installations.
Low-profile fountain provides an attractive and durable product, while enhancing applications requiring child ADA compliance.
Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Heavy-gauge stainless steel construction withstands abusive environments and resists stains.
Tamper-resistant fasteners and bottom plate help protect against vandalism.
Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
Rated for indoor or outdoor use.
Certifications:

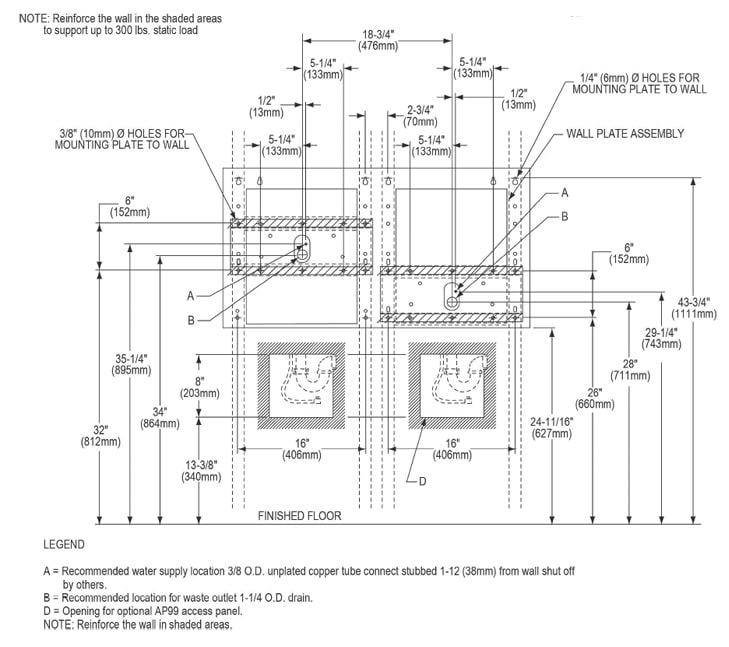

Measurement Diagram:
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 20-3/8" Tall x 38-1/2" Width x 19-3/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 41-1/8" Length x 29" Width x 16" Height |
| Shipping Weight: | 60 lbs. |
| UPC / GTIN: | 94902388427 |
| Manufacturer Model No.: | EHWM17C |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Slimline® Soft Sides® Heavy Duty Bi-Level Fountain, NonFiltered Non-Refrigerated Stainless. Features shall include Heavy Duty Vandal Resistant. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
