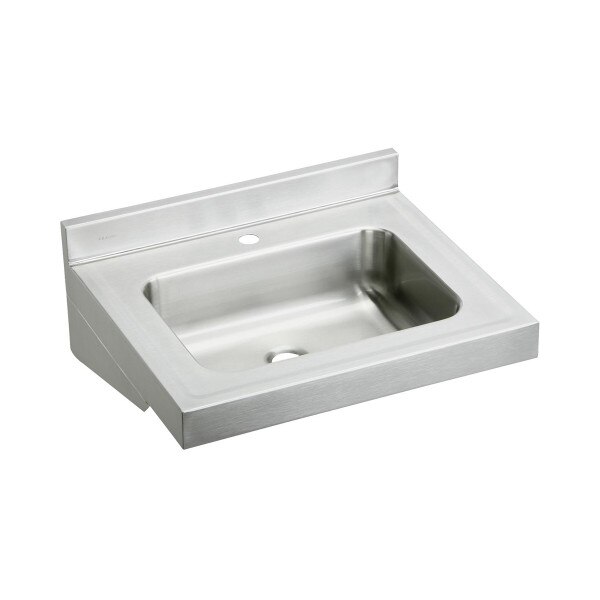

Elkay ELV22191 Wall Hung Restroom Sink, 1 Faucet Hole, SS, 22" x 19" x 5-1/2", Sink Only
Elkay heavy duty 18 gauge stainless steel wall hung lavatory sink with integrated backsplash. Type 304 Stainless Steel with a #4 satin finish. 1 faucet hole. Rear center drain placement. Sound deadening bottom only pads. 22" Wide x 19" Projection x 5-1/2" Height. Bowl dimensions are 16” Wide x 11-1/2” Front to Back x 5-1/2” Deep. Backsplash height is 2.50”. This item is designed for restroom applications. Strainer not included.
18-gauge, Type 304 stainless steel
1-3/4" coved corners, 2-1/2" high backsplash, and 2-1/2" apron front and sides
Front and side decks with raised rim
Exposed surfaces blended by hand to a uniform lustrous satin finish
Sound-deadening material minimizes sound and vibration for a quieter time at the sink
1 Faucet hole
Certifications:

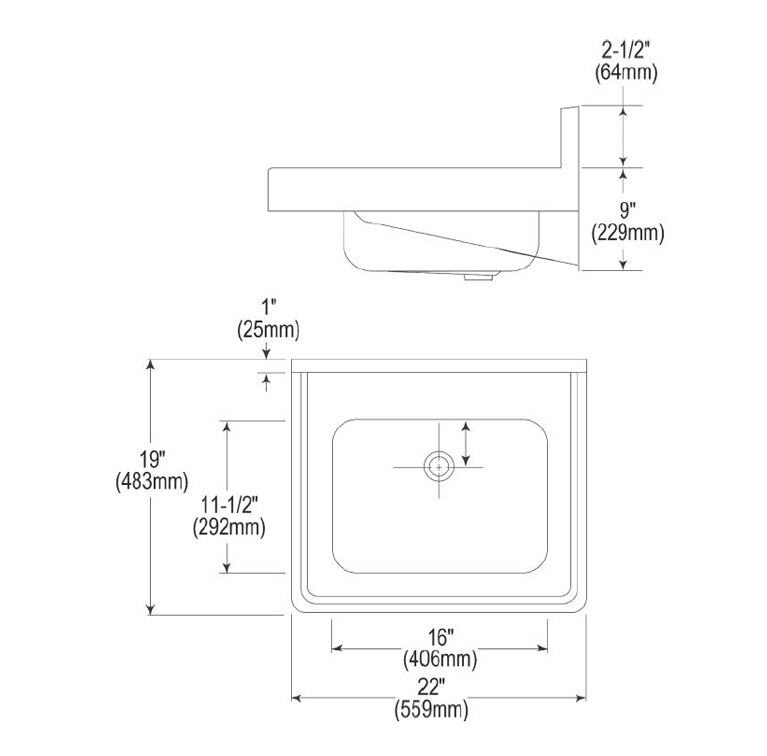

Measurement Diagram:
| Brand: | Elkay |
| Type: | Lavatory Sinks |
| Faucet Holes: | 1 |
| Mount Type: | Wall |
| Application Type: | Lavatory |
| Mount: | Wall |
| Material: | Stainless Steel |
| Gauge: | 18 |
| Bowl Dimensions: | L: 16" W: 11-1/2" H: 5-1/2" |
| Drain Size: | 1-1/2" |
| Minimum Cabinet Size: | N/A |
| Drain Included: | No |
| Sound Deadening: | Bottom only pads |
| Overall Dimensions: | L: 22" W: 19" H: 5-1/2" |
| Shipping Dimensions: | L: 26-1/4" W: 24-1/4" H: 12-1/2" |
| Shipping Weight: | 16 lbs. |
| UPC / GTIN: | 94902073460 |
| Country of Manufacture: | United States |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Stainless Steel 22" x 19" x 5-1/2", Wall Hung Lavatory Sink. Sink is manufactured from 18 gauge 304 Stainless Steel with a Buffed Satin finish, Rear Center drain placement, and Bottom only pads.
