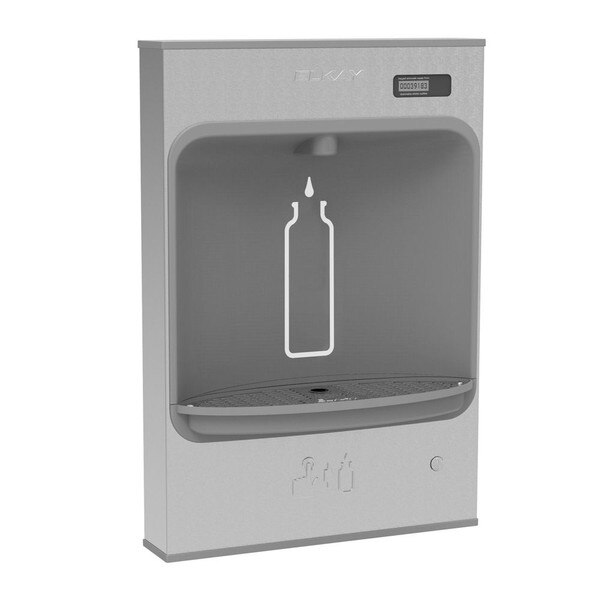

Elkay EMASMB EZH2O Bottle Filling Station, Push Button, Surface Mount (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Non-Electric Surface mount design - ideal for installations where electrical wiring is not easily accessible or locations looking to reduce electrical usage. Push-button activation delivers 1.0 gpm
Note that while this unit does not require power to dispense water, it does use 3 AA batteries to track bottle count. Batteries are generally expected to last between 6 months and a year, depending on type (alkaline, lithium ion, etc.) and usage.
- Mechanical push button designed for use in limited wall depth applications, for areas where electric is not available.
- Fill rate is 1.5 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Able to pair with a remote chiller.
- Laminar flow provides clean fill with minimal splash.
- Silver Ion Antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Certifications:

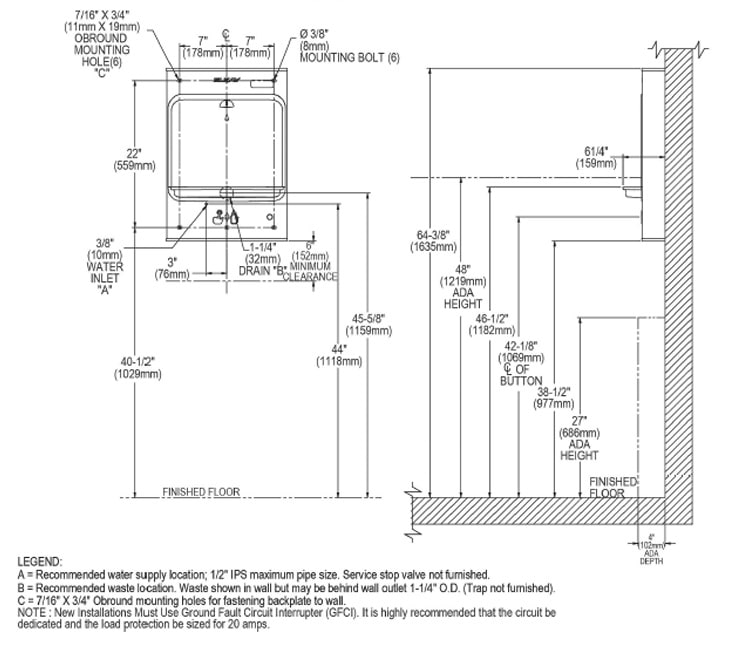

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | ABS Polycarbonate Alcove |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | Battery operated Green Ticker (Counts 20 oz bottles saved from waste.) |
| Overall Dimensions: | 25-7/8" Tall x 17-7/8" Wide x 3-7/16" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 28" Height x 20" Width x 6" Length |
| Shipping Weight: | 22 lbs. |
| UPC / GTIN: | 94902030531 |
| Manufacturer Model No.: | EMASMB |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Mechanical Bottle Filling Station Surface Mount, Battery Powered Non-Filtered Non-Refrigerated Stainless. Features shall include Antimicrobial, Green Ticker™, Laminar Flow, Real Drain. Mechanical Bottle Filler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
