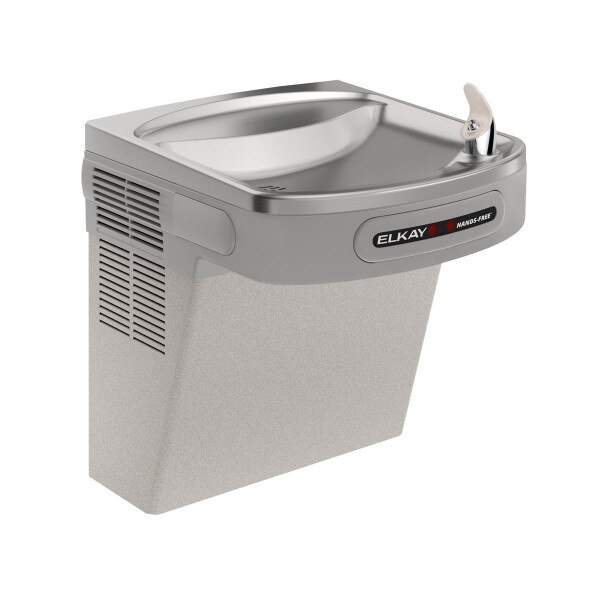

Elkay EZO8L Wall Mount, ADA, Hands-Free, Water Cooler, 8 GPH, Lt Gray Granite, (Refrigerated, Non-Filtered)
The Elkay EZ models are our most popular water cooler series. This model offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
Attractive, contemporary design matches modern architecture.
Touchless, sensor-activated units are designed for easy use and improved hygiene.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Vinyl clad finish is durable and attractive.
Rated for indoor use.
Certifications:

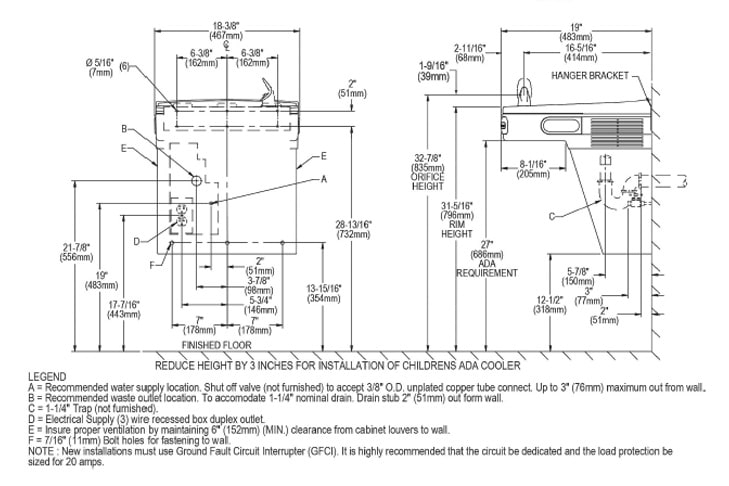

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 19-13/16" Tall x 18-3/8" Width x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 24-3/8" Height x 19-11/16" Width x 20-1/2" Length |
| Shipping Weight: | 51 lbs. |
| UPC / GTIN: | 94902247540 |
| Manufacturer Model No.: | EZO8L |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Hands-free Activation ADA Cooler Non-filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Elkay EZO8 and LZO8 Hands-Free Drinking Water Solutions, Hygienic Hydration
