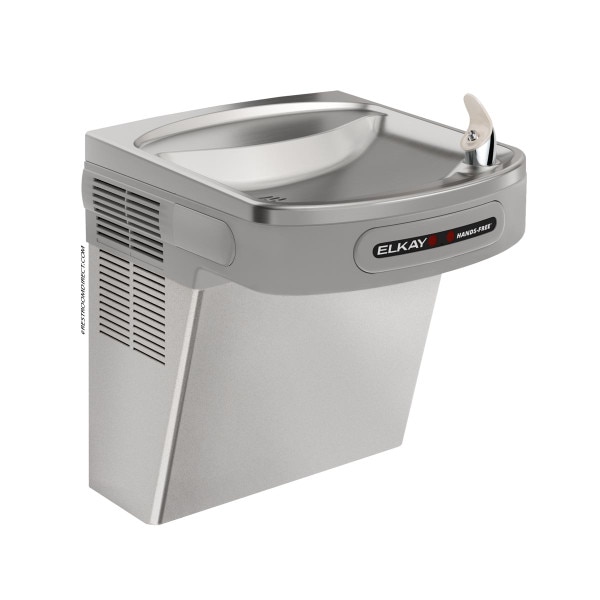

Elkay EZO8S Hands-Free Water Cooler, Wall Mount, Stainless, (Refrigerated, Non-Filtered)
The Elkay EZ models are Elkay's most popular water cooler series. This model offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.
Touchless, sensor-activated units are designed for easy use and improved hygiene.
Attractive, contemporary design matches modern architecture.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Stainless steel finish is corrosion resistant and attractive.
Rated for indoor use.

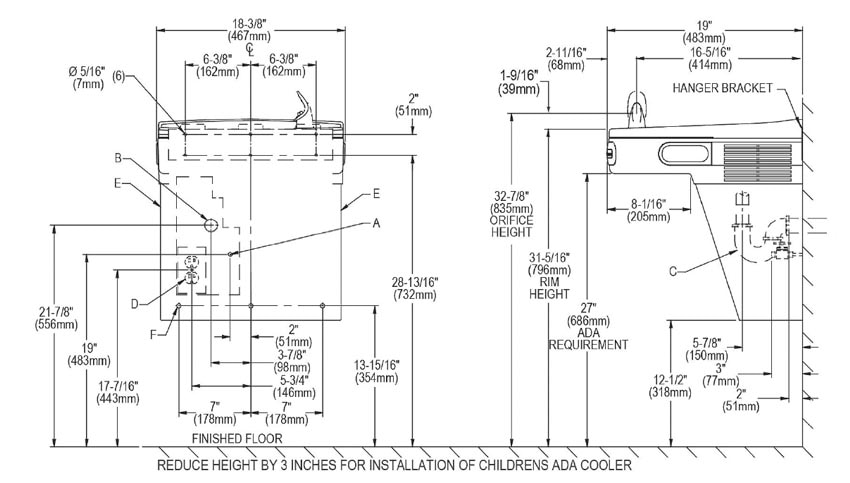

Measurement Diagram:
(L-S).jpg "Measurements for Elkay EZO8S")
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | FlexiGuard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V, 60Hz, 370 Watts |
| Status Display: | None |
| Overall Dimensions: | 18-3/8" Wide x 19" Deep x 19-13/16" Tall |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 20-1/2" Length x 19-11/16" Width x 24-3/8" Height |
| Shipping Weight: | 51 lbs. |
| UPC / GTIN: | 94902247557 |
| Manufacturer Model No.: | EZO8S |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Hands-free Activation ADA Cooler Non-filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Product Group Variations:
Elkay EZO8 and LZO8 Hands-Free Drinking Water Solutions, Hygienic Hydration
