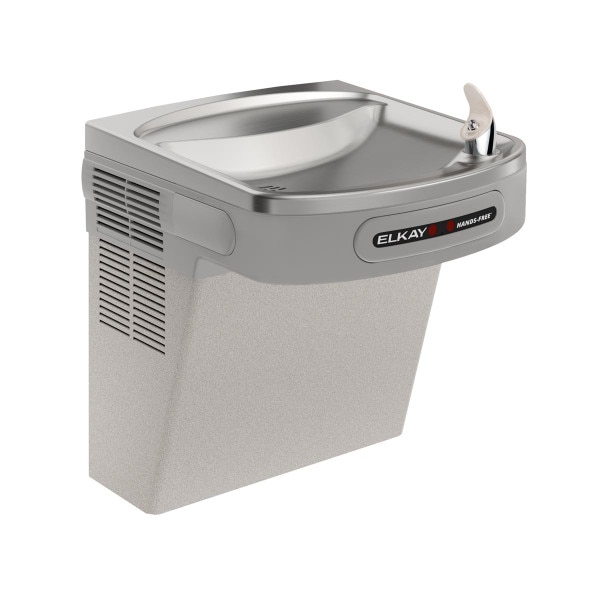

Elkay EZODL Hands-Free Drinking Fountain, Wall Mount, Light Gray Granite (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZ models are Elkay's most popular water cooler series. This models offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.
Touchless, sensor-activated units are designed for easy use and improved hygiene.
Attractive, contemporary design matches modern architecture.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Vinyl clad finish is durable and attractive.
Rated for indoor use.
Measurement Diagram:
(L-S).jpg "Measurements for Elkay EZODL")
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | FlexiGuard Safety Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | 110-120V, 60Hz, < 100 Watts |
| Status Display: | None |
| Overall Dimensions: | 18-3/8" Wide x 19" Deep x 19-13/16" Tall |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 20-1/2" Length x 19-11/16" Width x 24-3/8" Height |
| Shipping Weight: | 36 lbs. |
| UPC / GTIN: | 94902272399 |
| Manufacturer Model No.: | EZODL |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Hands-free Activation ADA Cooler Non-filtered Non-refrigerated Light Gray Granite. Features shall include Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
