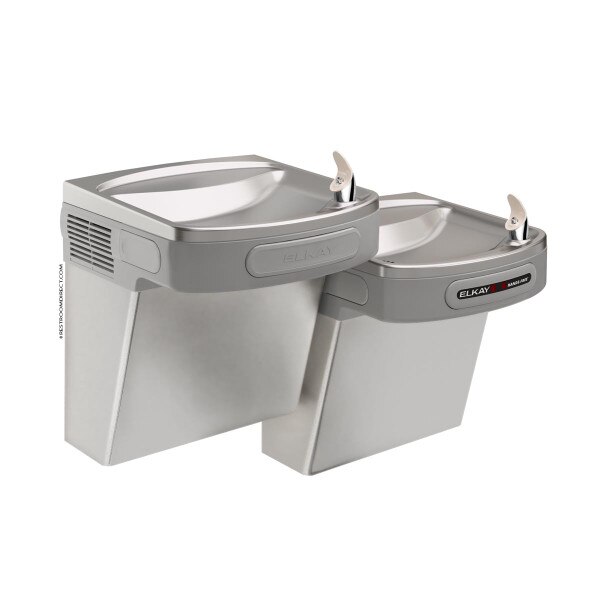

Elkay EZOSTL8SC Hands-Free Water Cooler, Bi-Level, Stainless, (Refrigerated, Non-Filtered)
The Elkay EZ models are Elkay's most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
(L-S).jpg "Measurements for Elkay EZOSTL8SC")
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
- (1) Touchless, sensor-activated unit designed for easy use and improved hygiene.
- Attractive, contemporary design matches modern architecture.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
- Stainless steel finish is corrosion resistant and attractive.
- Rated for indoor use.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | One (1) side automatic (Infra-red sensor) and one (1) side manual push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | FlexiGuard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V, 60Hz, 370 Watts |
| Status Display: | None |
| Overall Dimensions: | 36-3/4" Wide x 19" Deep x 25-5/16" Tall |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 34" Height x 20" Width x 20" Length |
| Shipping Weight: | 76 lbs. |
| UPC / GTIN: | 94902247595 |
| Manufacturer Model No.: | EZOSTL8SC |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Versatile Hands-free Activation Bi-level ADA Cooler Non-filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
