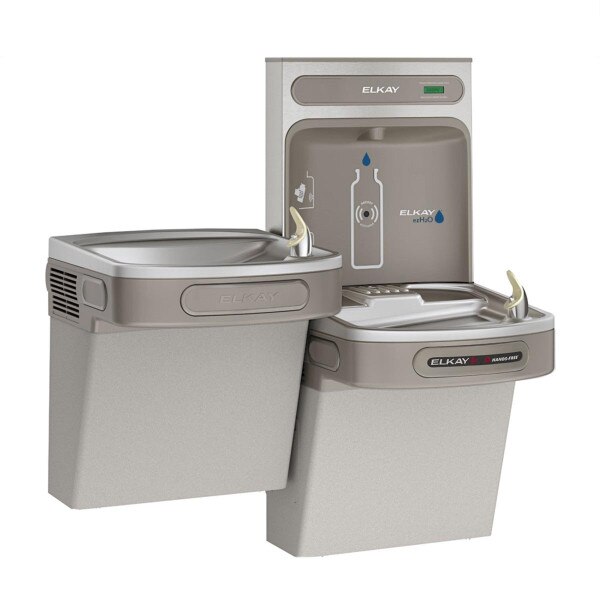

Elkay EZOTL8WSLK Hands-Free Water Cooler w/Bottle Filler, Light Gray, (Refrigerated, Non-Filtered)
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
- EZOTL8WSLK - (1) Hands-Free EZO Sensor Drinking Fountain, (1) Push Button Drinking Fountain, and (1) Bottle Filler
- Fill rate is 1.1 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
Certifications:

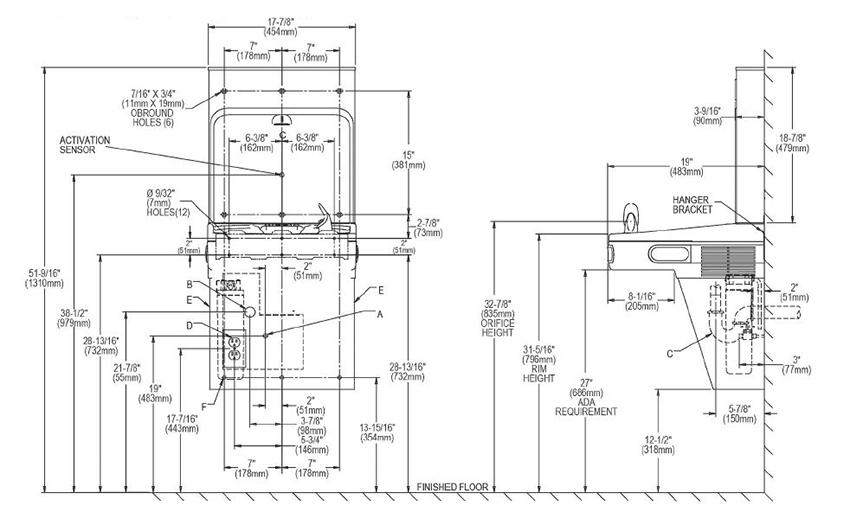

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | (1) Hands-Free EZO Sensor| (1) Push Button Drinking Fountain |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) bottle filler| one (1) drinking fountin and One (1) push button drinking fountain |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | FlexiGuard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 18-3/8" Tall x 19" Width x 39-1/16" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 34-3/16" Height |
| Shipping Weight: | 135 lbs. |
| UPC / GTIN: | 94902129174 |
| Manufacturer Model No.: | EZOTL8WSLK |
| Included: | Water Cooler (EZOTL8WSLC) Bottle Filler (EZWSR) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station with Bi-Level ADA Cooler Hands Free Activation Non-Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Product Group Variations:
Elkay EZO8 and LZO8 Hands-Free Drinking Water Solutions, Hygienic Hydration
