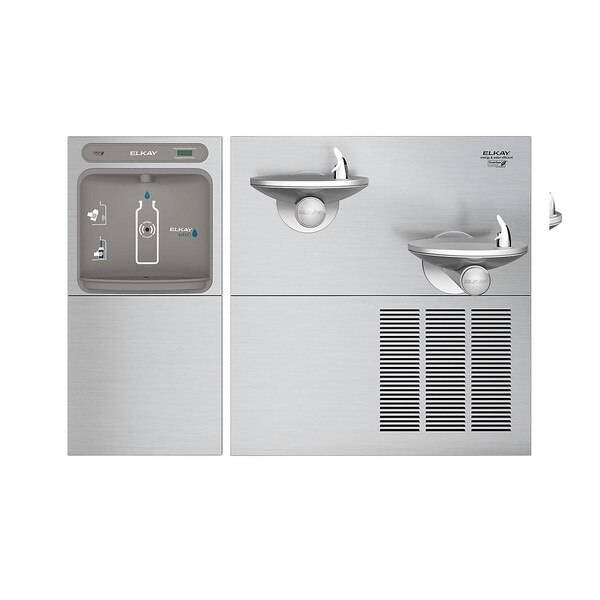

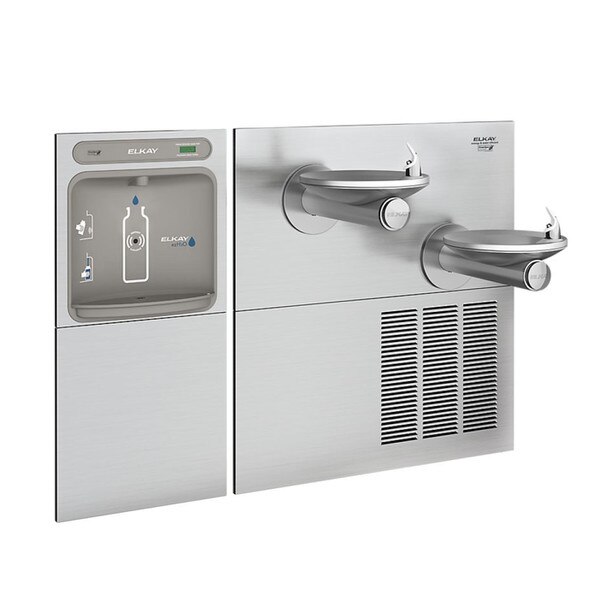

Elkay EZWS-SFGRN28K In-Wall EZH2O Bottle Filler & Bi-level SwirlFlo Water Cooler (Refrigerated, Non-Filtered)
NOTE: Bottle filling station can be located on right or left of bottle filling station.
- Styles available with either SwirlFlo high-efficiency fountain or Soft Sides refrigerated fountain.
- Touchless, sensor activation designed for easy use (bottle filler); easy-to-operate push-button activation (bubbler).
- Fill rate is 1.1 GPM.
- High-performance compressor and insulation reduce energy consumption. GreenSpec listed and badged to demonstrate a commitment to sustainability.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
Certifications:

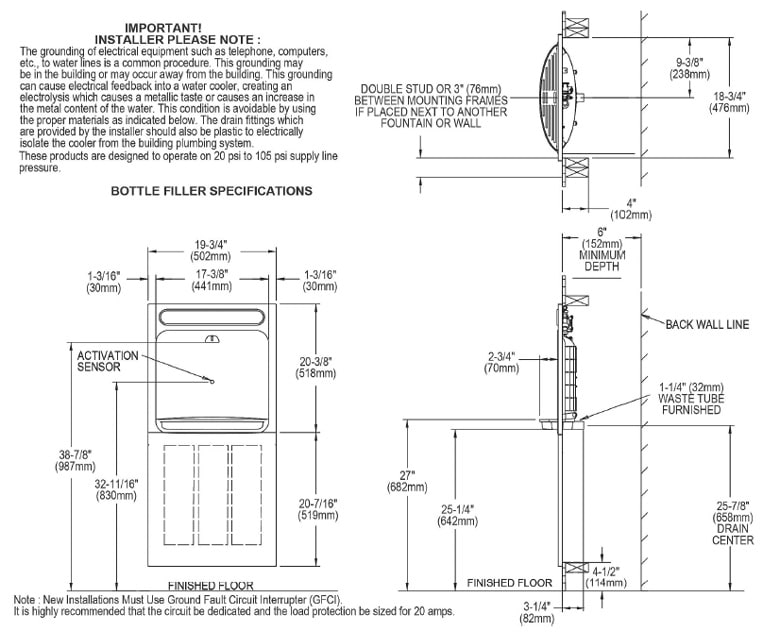

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Recessed |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 40-13/16" Tall x 59" Wide x 18-3/8" Deep |
| Rough-in: | Left: 37-3/4" Tall x 18-3/4" Wide x 12" Deep Right: 37-3/4" Tall x 37-1/2" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 41" Len x 15-3/16" Wdth x 29-1/2" Hgt Box 2: 12-1/2" Len x 15-1/2" Wdth x 22" Hgt Box 3: 12-1/2" Len x 15-1/2" Wdth x 22" Hgt Box 4: 28-1/4" Len x 24-1/4" Wdth x 12-1/2" Hgt Box 5: 23-1/4" Len x 4-1/2" Wdth x 44-1/2" Hgt Box 6: 19" Len x 9" Wdth x 46" Hgt |
| Shipping Weight: | 162 lbs. |
| UPC / GTIN: | 94902767178 |
| Manufacturer Model No.: | EZWS-SFGRN28K |
| Included: | Fountain (ERPBGRND28C) Bottle Filler (EZWSM8C) Chiller (2 x ECH8GRN) Mounting Frame (MF200) Mounting Frame (MFWS100) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station & SwirlFlo® Bi-Level Fountain, High Efficiency Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Ticker™, Hands Free, High Efficiency, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 3 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
