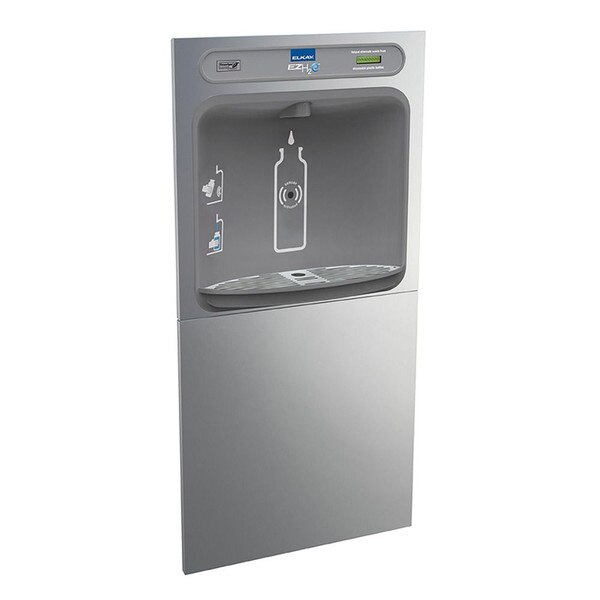

Elkay EZWSMDK In-Wall EZH2O Bottle Filling Station (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
- Touchless, sensor activation (bottle filler) designed for easy use.
- Fill rate is 1.5 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Certifications:

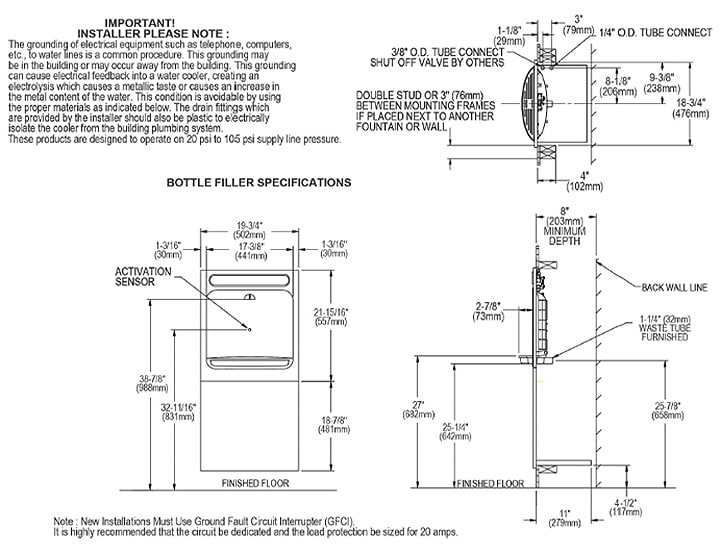

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | ABS Polycarbonate Alcove |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | Green Ticker Bottle Counter |
| Overall Dimensions: | 40-13/16" Tall x 19-3/4" Wide x 3-1/2" Deep |
| Rough-in: | 37-3/4" Tall x 18-3/4" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height Box 2: 23-1/4" Length x 4-1/2" Width x 44-1/2" Height |
| Shipping Weight: | 31 lbs. |
| UPC / GTIN: | 94902746166 |
| Manufacturer Model No.: | EZWSMDK |
| Included: | Bottle Filler (EZWSMDC) Mounting Frame (MFWS100) |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® In-Wall Bottle Filling Station with Mounting Frame, NonFiltered Non-Refrigerated Stainless. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
