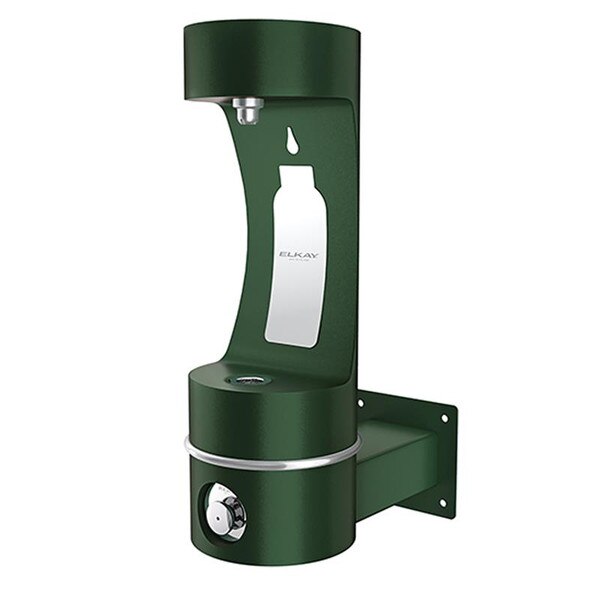

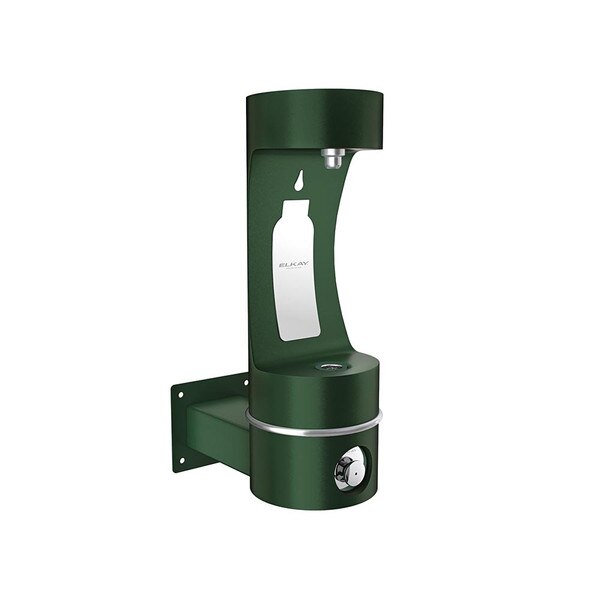

Elkay LK4405BFEVG Outdoor EZH2O Bottle Filling Station, Wall Mount, Evergreen
Outdoor Bottle Filling Stations are ideal for educational campuses and recreational areas.

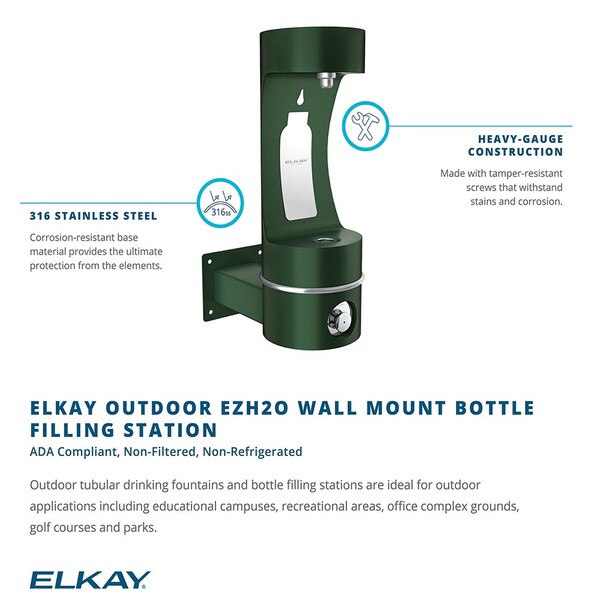

Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
Beautiful vibrant colors for every environment. Easily identifiable large bottle graphic promotes greater awareness and use.
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Laminar flow provides clean fill with minimal splash.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Ideal for outdoor use.
Certifications:
Measurement Diagram:
Installation Location: | Outdoor |
Number of Stations: | One (1) Bottle Filling Station |
Mount: | Wall / Surface |
Operation: | Push button |
Basin(s): | Stainless Steel Laminar Drain |
Cabinet(s): | Stainless Steel, Evergreen Finish |
Bubbler(s): | None |
Cooled: | No |
Filtered: | No |
Power: | No power required |
Status Display: | None |
Overall Dimensions: | 10" Wide x 32" Tall x 19-1/8" Deep |
Rough-in: | Not applicable |
Shipping Dimensions: | 27" Length x 27" Width x 17" Height |
Shipping Weight: | 63 lbs. |
UPC / GTIN: | 94902061702 |
Manufacturer Model No.: | LK4405BFEVG |
Country of Manufacture: | USA |
Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Single Arm Bottle Filling Station Wall Mount, Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Outdoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
