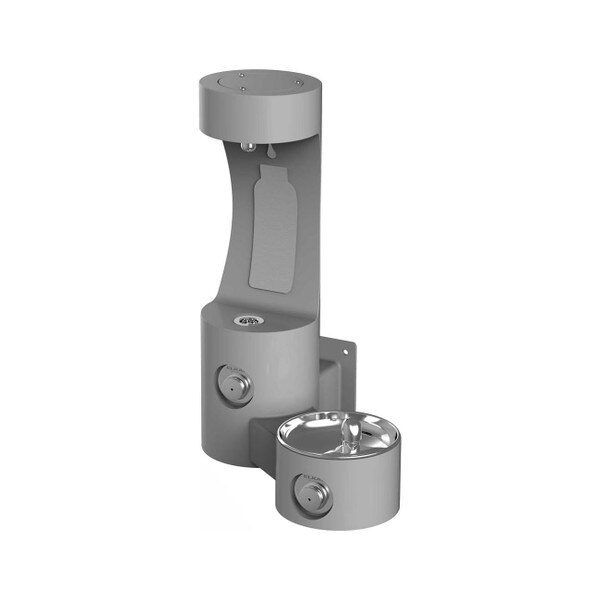

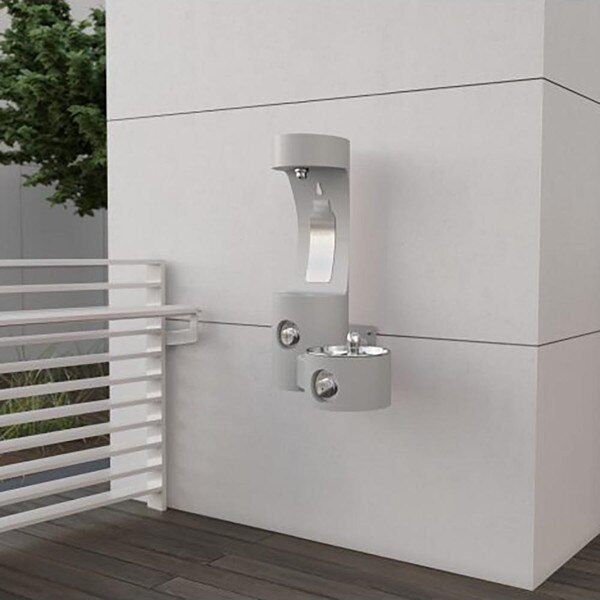

Elkay LK4408BFGRY Outdoor EZH2O Bottle Filling Station w/Drinking Fountain, Wall Mount, Gray
Outdoor Bottle Filling Stations are ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
Beautiful vibrant colors for every environment. Easily identifiable large bottle graphic promotes greater awareness and use.
Integrated drinking fountain adds additional water dispensing option for guests.
Wall Mount Mechanical Bottle Filler Button with Mechanical Front Bubbler Button
316 Stainless, Laminar Flow, Heavy Duty Vandal Resistant
Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access
For outdoor use.
No power required.
Certifications:
Measurement Diagram:
| Installation Location: | Outdoor |
| Number of Stations: | One (1) drinking fountain plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Gray Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 21-7/16" Wide x 33-1/2" Tall x 21-1/4" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 47" Length x 36" Widthe x 23" Height |
| Shipping Weight: | 176 lbs. |
| UPC / GTIN: | 94902061702 |
| Manufacturer Model No.: | LK4408BFGRY |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Bottle Filling Station Wall Mount, with Single Fountain Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow. Furnished with Vandal Resistant bubbler. Mechanical Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
