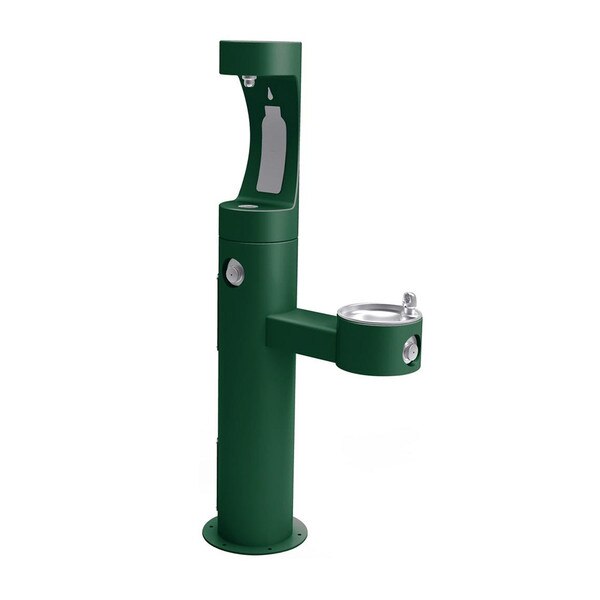

Elkay LK4420BF1UFRKEVG Freeze Resistant Outdoor EZH2O Bottle Filler & Drinking Fountain, Evergreen
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Laminar flow provides clean fill with minimal splash.
- Fully sealed, freeze-resistant system minimizes ground water contamination and prevents drain water from mixing with fresh water.
- Available in four colors: Evergreen, Blue, Gray, and Black.
Certifications:

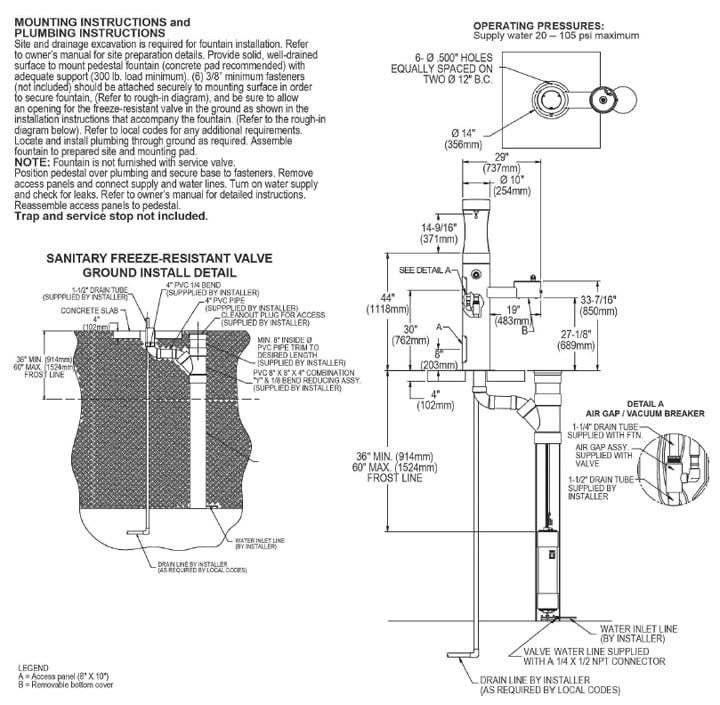

Measurement Diagram:
| Installation Location: | Outdoor |
| Number of Stations: | One (1) drinking fountain One (1) EZH2O bottle filling station One (1) Pet Bowl |
| Mount: | Floor or Free Standing |
| Operation: | Push Button |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Evergreen Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 64" Tall x 31" Wide x 14" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 37-1/2" Length x 19-1/2" Width x 11-1/2" Height Box 2: Not Published (LK4420BF1UFREVG) |
| Shipping Weight: | 176 lbs. |
| UPC / GTIN: | 94902066776 |
| Manufacturer Model No.: | LK4420BF1UFRKEVG |
| Included: | Fountain (LK4420BF1UFRKEVG) Valve (SANITARYFR2) |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Upper Bottle Filling Station Bi-Level Pedestal, Non-Filtered Non-Refrigerated Freeze Resistant. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow, Sealed Freeze Resistant. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Floor Mount/Freestanding, for Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
