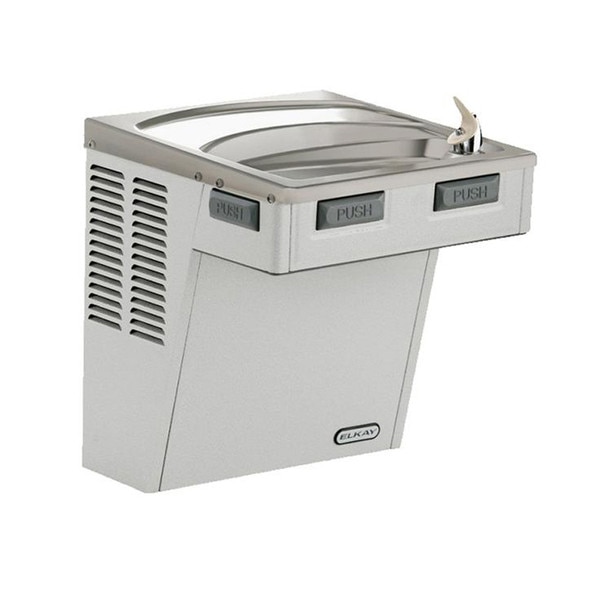

Elkay LMABF8S Wall Mount, Refrigerated, Filtered, ADA Water Fountain, Stainless Steel
Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.
Classic design fits well in all building designs.
Mechanical bubbler push bars continue to provide water when electrical service is interrupted.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Stainless steel finish is corrosion resistant and attractive.
Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Rated for indoor use.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

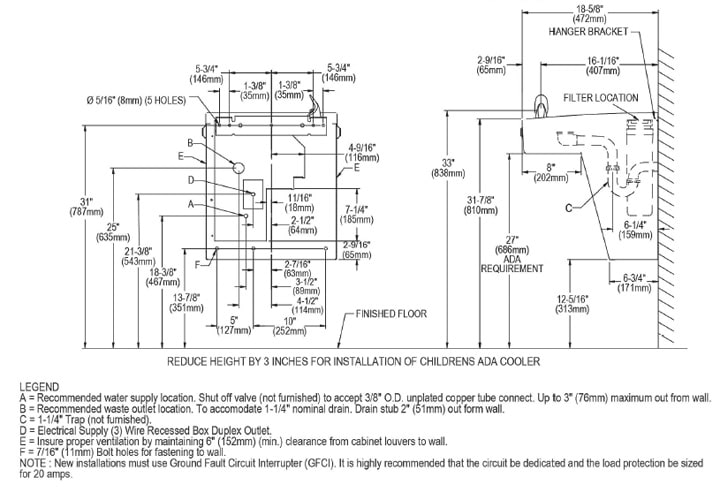

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 20-5/8" Tall x 18-5/8" Wide x 18-5/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 26.1875" Length x 20.5" Width x 19.6875" Height |
| Shipping Weight: | 61 lbs. |
| UPC / GTIN: | 94902409030 |
| Manufacturer Model No.: | LMABF8S |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Mechanical Activation ADA Cooler Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Filtered. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
