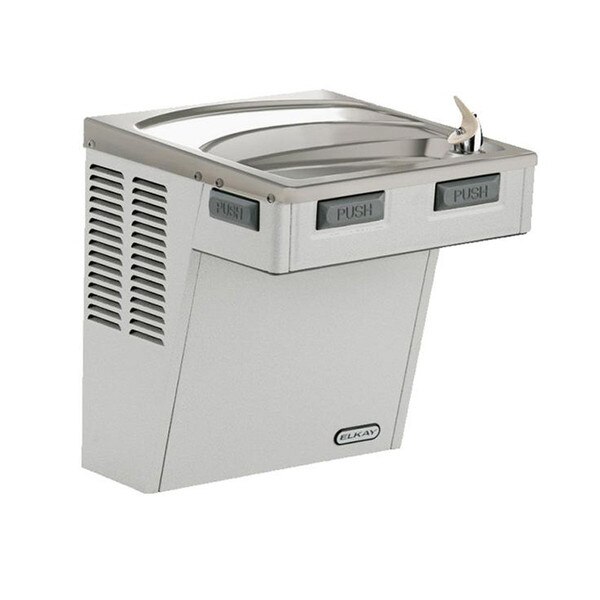

Elkay LMABFDS Wall Mount, ADA Water Fountain, Stainless Steel (Non-refrigerated,Filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. ALSO: This product DOES NOT require power. No electrical connection is necessary. |
Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.
Classic design fits well in all building designs.
Mechanical bubbler push bars continue to provide water when electrical service is interrupted.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Stainless steel finish is corrosion resistant and attractive.
Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Rated for indoor use.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

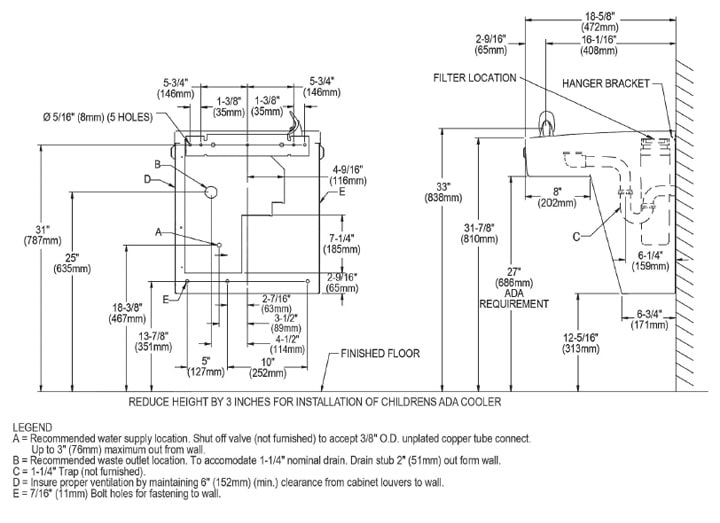

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 20-5/8" Tall x 18-5/8" Wide x 18-5/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 20-1/2" Length x 19-11/16" Width x 26-3/16" Height |
| Shipping Weight: | 39 lbs. |
| UPC / GTIN: | 94902409047 |
| Manufacturer Model No.: | LMABFDS |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Mechanical Activation ADA Cooler Filtered Non-refrigerated Stainless. Features shall include Filtered. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
