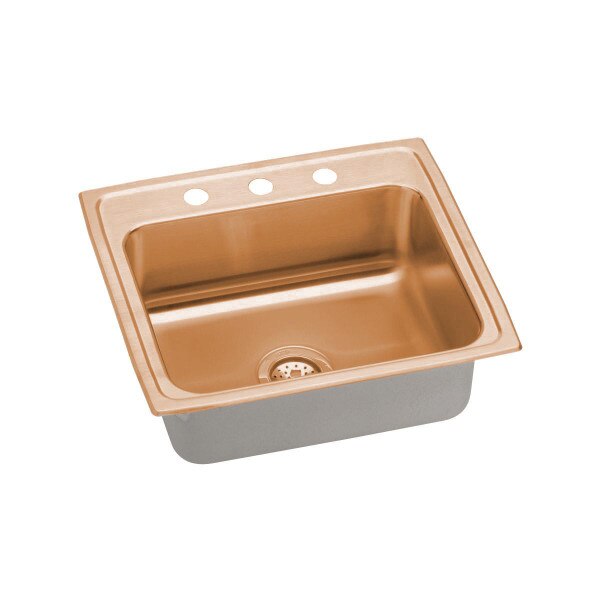

Elkay LRAD2219603-CU CuVerro Antimicrobial Copper Single Bowl Drop-in Sink, 22" x 19-1/2" x 6"
Elkay CuVerro Antimicrobial Copper , Single Bowl, Drop-in, ADA Sink. Formed from 18 gauge CuVerro Antimicrobial Copper that combines beauty and performance to be the only touch surface material registered by the U.S. Environmental Protection Agency (EPA) to continuously kill more than 99.9% of bacteria within two hours. Sink has Rear Center drain placement. Sound Dampening: Bottom only pads.
Overall Dimensions: 22" wide x 19-1/2" front to back x 6" high. Bowl Dimensions: 18"wide x 14" front to back x 5-7/8" deep, Drain Size: 3-1/2”. Minimum Cabinet Size: 27”, Mounting Hardware Part # 64090012 included for countertops up to 3/4" (19mm) thick. Cutout Dimensions for Drop-in Installation: 21-3/8" wide x 18-7/8" front to back with 1-1/2" corner radius.
Designed for Health Care application.
ADA Compliant
Antimicrobial Copper: Registered by the U.S. Environmental Protection Agency to continuously kill more than 99.9% of bacteria within two hours
Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine
Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
U-Channel Installation: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
Cabinet Size: Minimum cabinet size for this sink is 27"
Certifications:

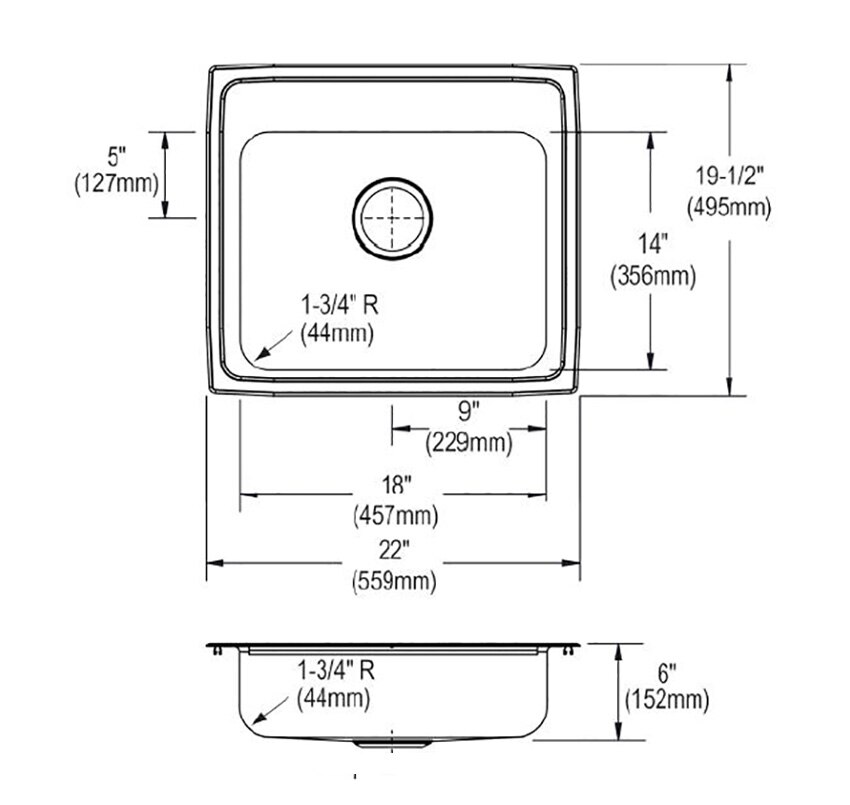

Measurement Diagram:
| Brand: | Elkay, CuVerro |
| Type: | Food Service & Kitchen Sinks |
| Faucet Holes: | 3 |
| Mount Type: | Drop-in |
| Application Type: | Health Care |
| Material: | CuVerro Antimicrobial Copper |
| Gauge: | 18 |
| Bowl Dimensions: | L: 18" W: 14" H: 5-7/8" |
| Drain Size: | 3-1/2" |
| Minimum Cabinet Size: | 27" |
| Drain Included: | No |
| Sound Deadening: | Bottom only pads |
| Overall Dimensions: | L: 22" W: 19-1/2" D: 6" |
| Shipping Dimensions: | L: 26-1/4" W: 24-1/4" H: 8-1/2" |
| Shipping Weight: | 13 lbs. |
| UPC / GTIN: | 94902006161 |
| Country of Manufacture: | United States |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay CuVerro Antimicrobial Copper 22" x 19-1/2" x 6", Single Bowl Drop-in ADA Sink. Sink is formed from 18 gauge CuVerro® Antimicrobial Copper that combines beauty and performance to be the only touch surface material registered by the U.S. Environmental Protection Agency (EPA) to continuously kill more than 99.9% of bacteria within two hours. Sink has Rear Center drain placement, and Bottom only pads.
