Elkay LVRC8S Wall Mount, Vandal Resistant, Refrigerated ADA Water Fountain, Stainless Steel
Vandal-resistant wall-mount water cooler features tamper-resistant pushbutton activation and one-piece bubbler.
Classic design stainless steel cooler provides an attractive and durable product.
Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Stainless steel construction withstands abusive environments and resists stains.
Tamper-resistant fasteners help protect against vandalism.
Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
Filter systems certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

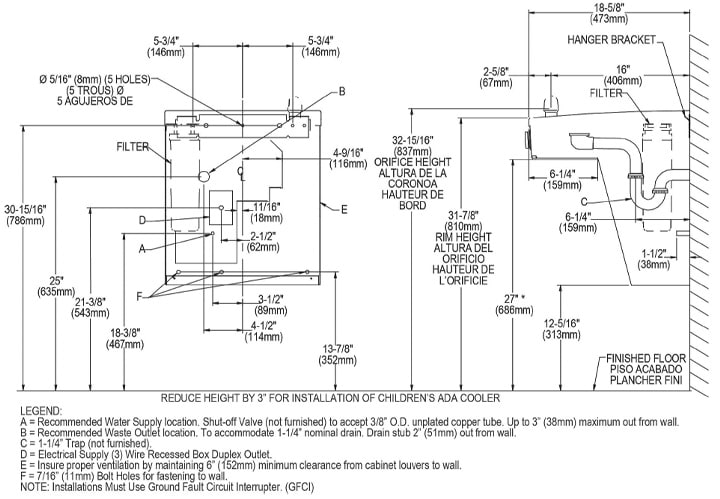

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 20-5/8" Tall x 18-1/2" Wide x 18" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 24" Height x 20" Width x 20" Length |
| Shipping Weight: | 61 lbs. |
| UPC / GTIN: | 94902401812 |
| Manufacturer Model No.: | LVRC8S |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Vandal Resistant ADA Cooler Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Filtered, Vandal Resistant. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
