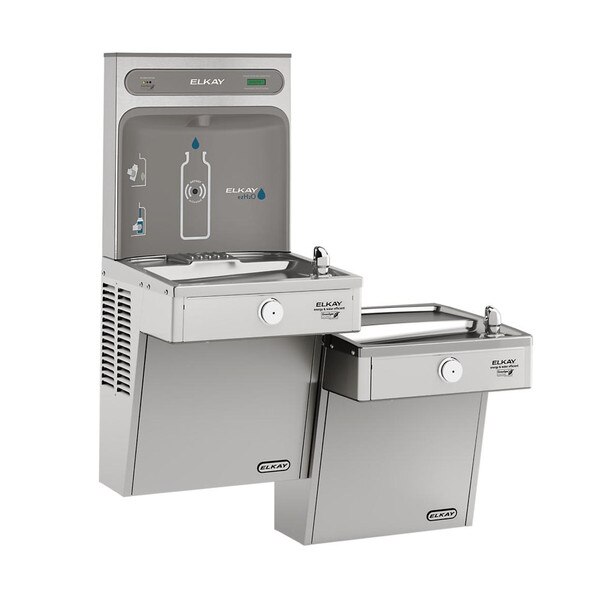

Elkay LVRCGRNTL8WSK Wall Mnt, Vandal Resist, Filtered, Refrig, Green Spec, Bottle Filler & Fountain
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Touchless, sensor activation (bottle filler) designed for easy use; vandal-resistant, push-button activation for the water cooler.
- High-performance compressor and insulation greatly reduce energy consumption.
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

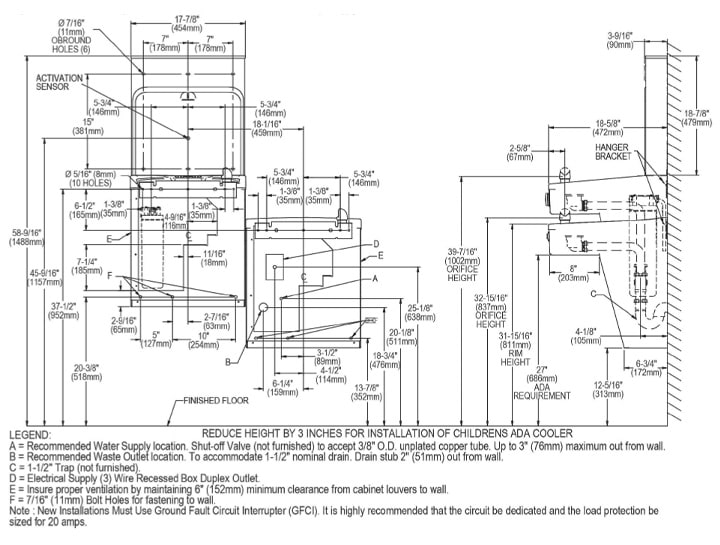

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 46-1/4" Tall x 36-1/8" Wide x 18-5/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 20-1/2" Length x 19-11/16" Width x 35-5/8" Height Box 2: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height |
| Shipping Weight: | 112 lbs. |
| UPC / GTIN: | 94902767291 |
| Manufacturer Model No.: | LVRCGRNTL8WSK |
| Included: | Water Cooler (LVRCGRNTL8WS) Bottle Filler (LZWSR) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station, & Bi-Level High Efficiency VandalResistant Cooler, Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, High Efficiency, Laminar Flow, Real Drain, Vandal Resistant, Visual Filter Monitor. Furnished with Vandal Resistant StreamSaver ™ bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
