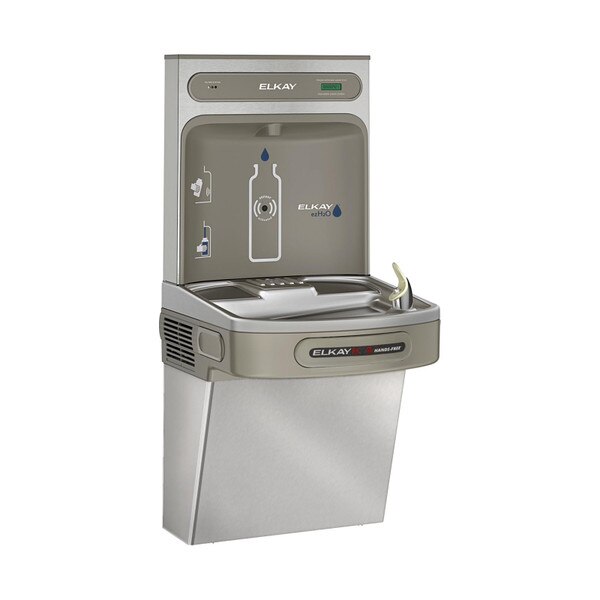

Elkay LZO8WSSK Hands-Free Water Cooler w/Bottle Filler, Stainless, (Refrigerated, Filtered)
NOTE: This product was previously: LZS8WSX-LZWSR-SS. |
Features: Elkay ezH2O® Bottle Filling Station with Single ADA Cooler, Filtered, 8 GPH, Stainless Steel. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing.
Includes Hands Free, Optional Visual Filter Monitor, Green Ticker™, Laminar Flow, Antimicrobial, Real Drain. Furnished with Flexi-Guard® Safety Bubbler. Electronic Bottle Filler Sensor and Electronic Sensor Bubbler activation.
Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
- Fill rate is 1.1 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:
Measurement Diagram:
Installation Location: | Indoor |
Number of Stations: | One (1) Bottle Filling Station |
Mount: | Wall / Surface |
Operation: | Automatic (Infra-red sensor) |
Basin(s): | Stainless Steel| Brushed Finish |
Cabinet(s): | Stainless Steel| Brushed Finish |
Bubbler(s): | FlexiGuard Safety Bubbler |
Cooled: | Yes |
Filtered: | Yes | Replacement filter 51300C |
Power: | 110-120V (Standard) |
Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
Overall Dimensions: | 18-3/8" Tall x 19" Width x 39-1/16" Deep |
Rough-in: | Not applicable |
Shipping Dimensions: | Box 1: 20-1/2" Length x 19-11/16" Width x 24-3/8" Height Box 2: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height |
Shipping Weight: | 85 lbs. |
UPC / GTIN: | 94902130606 |
Manufacturer Model No.: | LZO8WSSK |
Included: | Water Cooler (LZO8WSS) Bottle Filler (LZWSR) |
Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station with Single ADA Cooler Hands Free Activation Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor & Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
