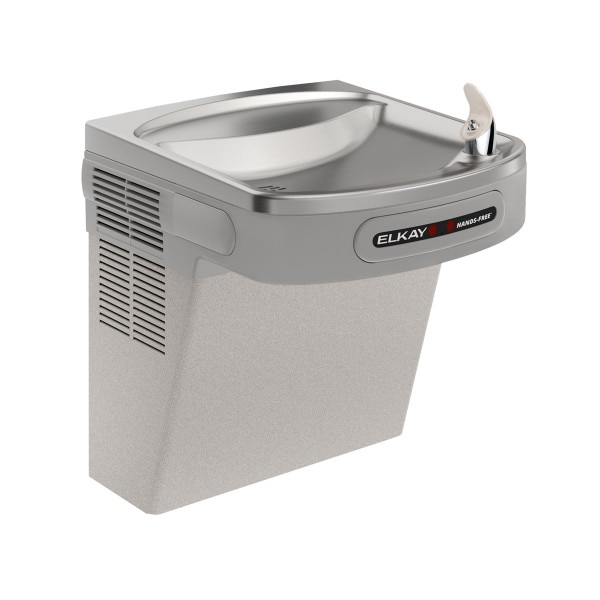

Elkay LZODL Hands-Free Drinking Fountain Wall Mount, ADA, Light Gray Granite (Non-refrigerated, Filtered)

(0) No Reviews yet
$762.79
SKU: LZODL
IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses.

The Elkay EZ models are Elkay's most popular water cooler series. This model offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.


  • Touchless, sensor-activated units are designed for easy use and improved hygiene.

  • Attractive, contemporary design matches modern architecture.

  • Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.

  • Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.

  • Filtered units display filter status for easy notification of expiration.

  • Vinyl clad finish is durable and attractive.



This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.



Certifications:

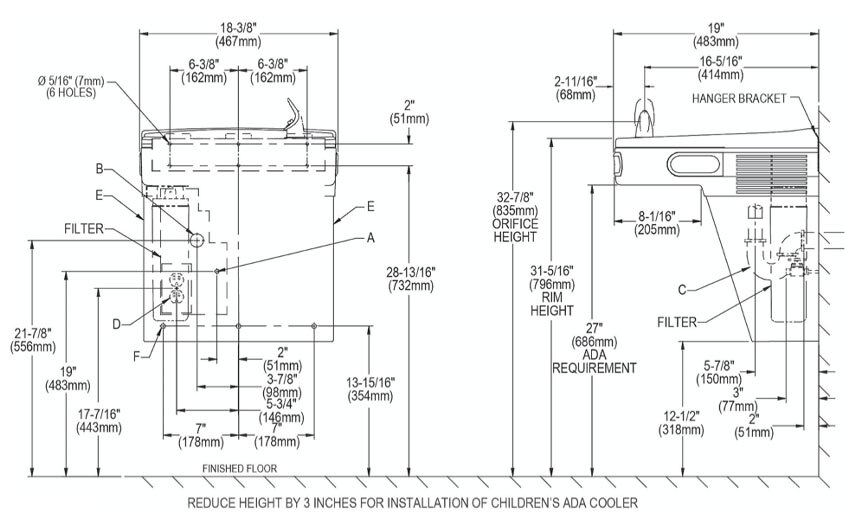

Measurement Diagram:


Installation Location: Indoor
Number of Stations: One (1) drinking fountain
Mount: Wall / Surface
Operation: Automatic (Infra-red sensor)
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Vinyl Clad Steel (Light Gray Granite)
Bubbler(s): FlexiGuard Safety Bubbler
Cooled: No
Filtered: Yes | Replacement filter 51300C
Power: 110-120V, 60Hz, < 100 Watts
Status Display: None
Overall Dimensions: 18-3/8" Wide x 19" Deep x 19-13/16" Tall
Rough-in: Not applicable
Shipping Dimensions: 20-1/2" Length x 19-11/16" Width x 24-3/8" Height
Shipping Weight: 39 lbs.
UPC / GTIN: 94902434889
Manufacturer Model No.: LZODL
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay Wall Mount Hands-free Activation ADA Cooler Filtered Non-refrigerated Light Gray Granite. Features shall include Filtered, Hands Free, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
