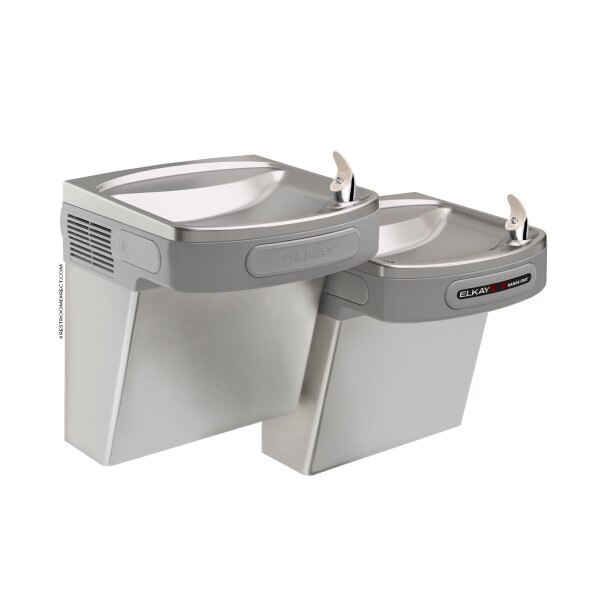

Elkay LZOSTL8SC Hands-Free Water Cooler, Bi-Level ADA, Filtered, Refrigerated, Stainless

The Elkay EZ models are Elkay's most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.

NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation

• (1) Touchless, sensor-activated unit designed for easy use and improved hygiene.
• Attractive, contemporary design matches modern architecture.
• Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
• Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
• Filtered units display filter status for easy notification of expiration.
• Stainless steel finish is corrosion resistant and attractive.

---

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.

---

Certifications:



---

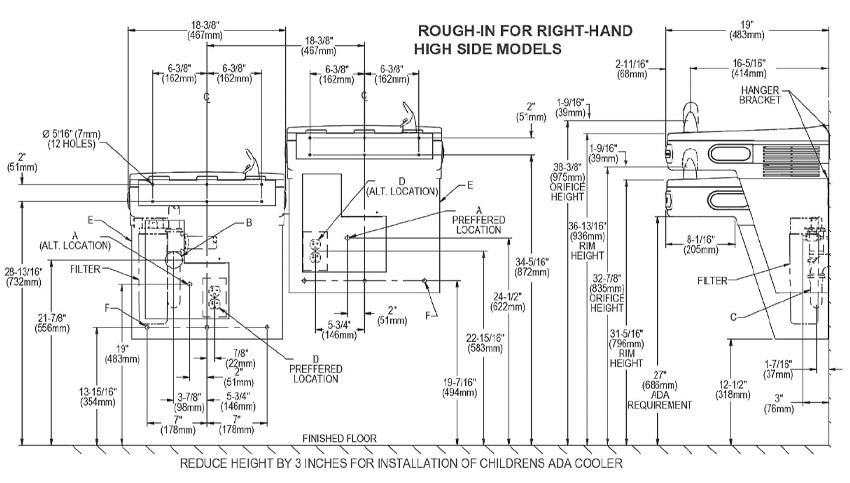

Measurement Diagram:

---
