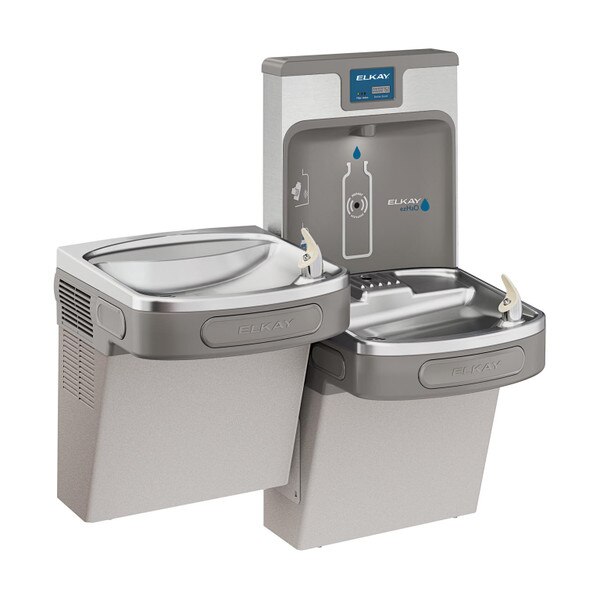

Elkay LZSTL8WSLP Wall Mount, Filt, Refrig, Enhanced EZH2O & Bi-level ADA Fountain, Lt. Gray Grn
The Elkay ezH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Integrated look combines our Green Ticker™ and filter status lights.
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator. Fillsafe recognition automatically recognizes new filter and updates LED light back to green.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Energy-saving feature, allowing for the refrigeration to be powered off when not in use.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

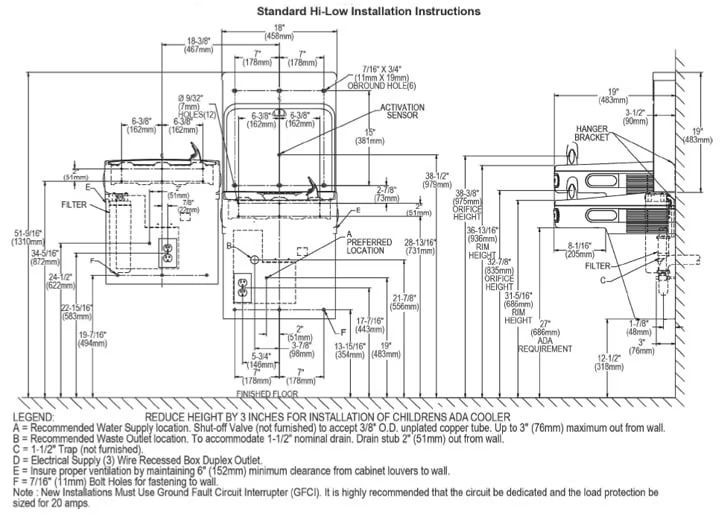

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 44-1/8" Tall x 36-3/4" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 40" Height x 21" Width x 21" Length |
| Shipping Weight: | 98 lbs. |
| UPC / GTIN: | 94902035970 |
| Manufacturer Model No.: | LZSTL8WSLP |
| Included: | Ships in 1 box: Bottle Filler, Water Cooler, Filter |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Enhanced ezH2O® Bottle Filling Station, & Versatile Bi-Level ADA Cooler, Filtered Refrigerated Light Gray. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
