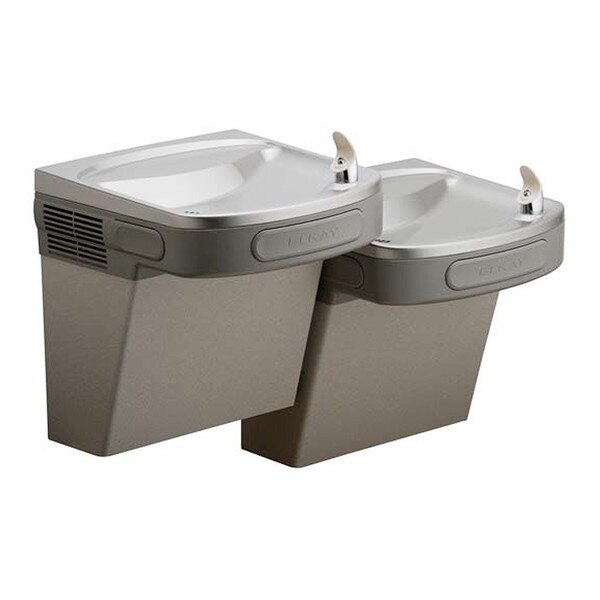

Elkay LZSTLG8LC Wall Mount, Refrig., Filtered, Green Spec, Bi-level ADA Water Fountain, Lt Gray
The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
NOTE: This product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation
- High-performance compressor and insulation greatly reduces energy consumption.
- Electronic bubbler push bars for easy activation.
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
- Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Equipped with StreamSaver low-flow bubbler.
- GreenSpec Listed and badged to demonstrate commitment to sustainability.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

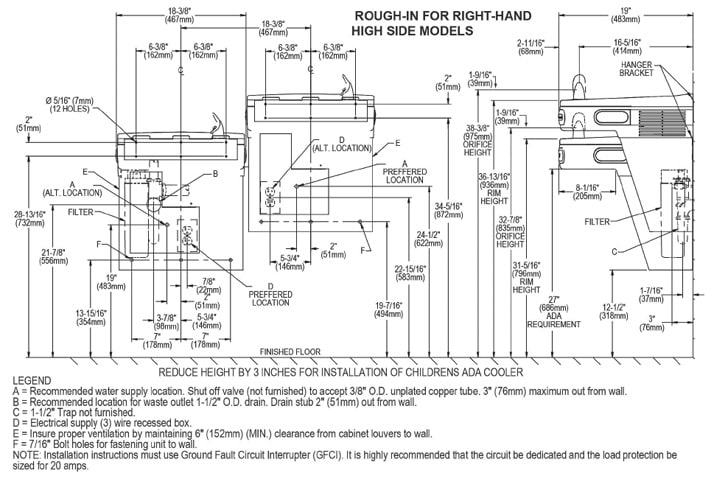

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 25-5/16" Tall x 36-3/4" Width x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 34.1875" Length x 20.5" Width x 19.6875" Height |
| Shipping Weight: | 74 lbs. |
| UPC / GTIN: | 94902014654 |
| Manufacturer Model No.: | LZSTLG8LC |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Bi-level Versatile ADA Cooler Filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Energy Savings, Filtered. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
