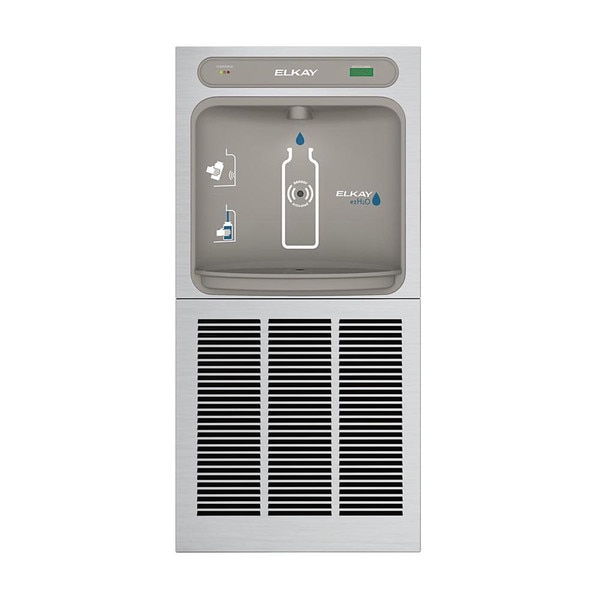

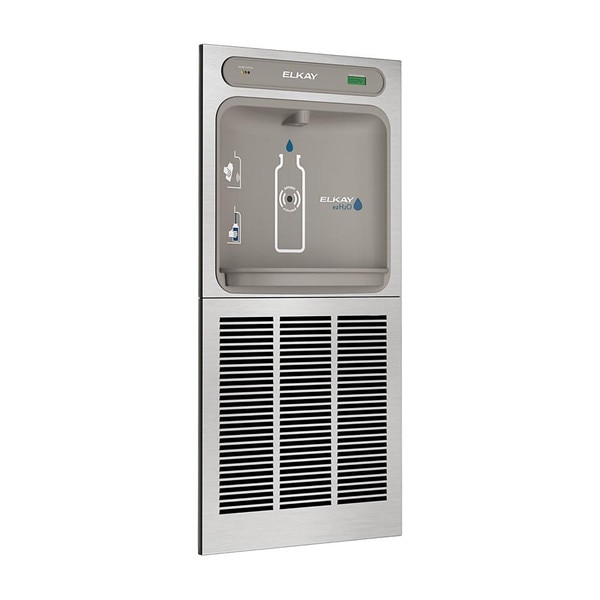

Elkay LZWS8K In-Wall, Filtered, Refrigerated EZH2O Bottle Filler (Mounting Frame NOT incl.)
 | NOTE: This product does NOT include the MFWS100 mounting frame which is assumed to have been purchased and installed BEFROREHAND. If you would like purchase this unit with the mounting frame please see - LZWSM8K |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Fully recessed in-wall design.
Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
- Touchless, sensor activation (bottle filler) designed for easy use.
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) EZH2O bottle filling station |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | None |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 40-13/16" Tall x 19-3/4" Width x 3-1/2" Deep |
| Rough-in: | 37-3/4" Tall x 18-3/4" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 12-1/2" Length x 15-1/2" Width x 22" Height Box 2: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height Box 3: 14" Length x 13-11/16" Width x 4-3/16" Height |
| Shipping Weight: | 66 lbs. |
| UPC / GTIN: | 94902633527 |
| Manufacturer Model No.: | LZWS8K |
| Included: | Fountain (LZWSM8C) Chiller (ECH8) Filter (EWF3000) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® In-Wall Bottle Filling Station, Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
