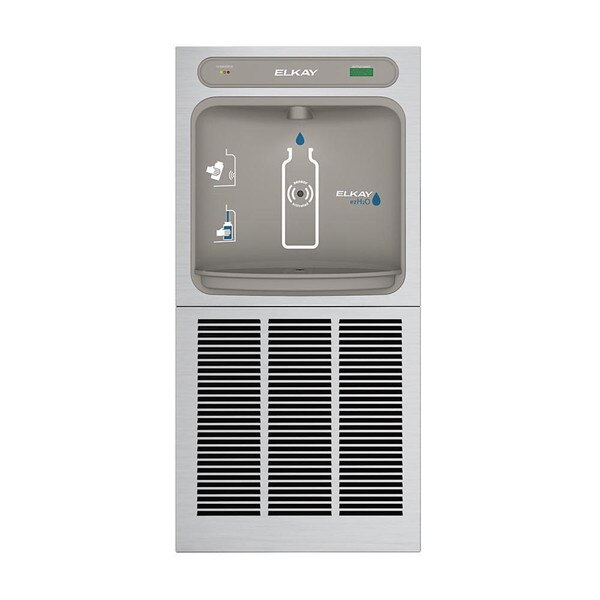

Elkay LZWSM8PK In-Wall, Refrigerated, Filtered, Bottle Filling Station, [for Side by Side]
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Designed to be paired with Elkay SwirlFlo architectural fountains.
Touchless, sensor activation (bottle filler) designed for easy use.
Fill rate is 1.1 GPM.
Visual filter monitor with LED filter status indicator for when filter change is necessary.
The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

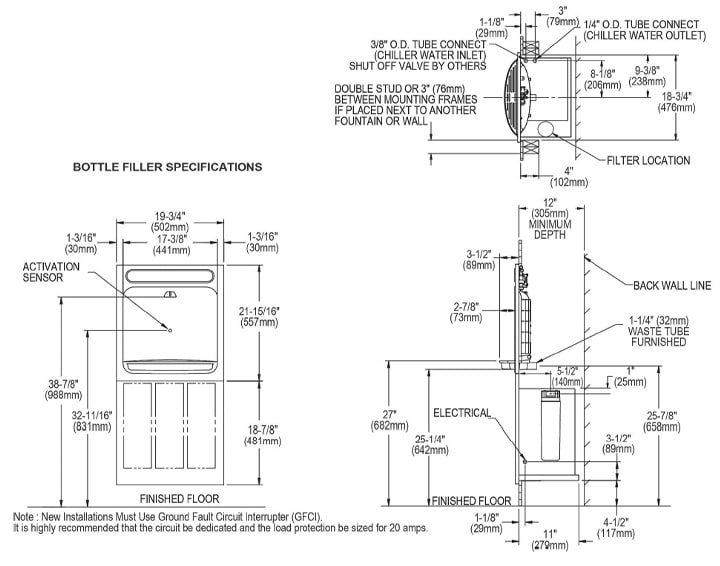

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) EZH2O bottle filling station |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | None |
| Cooled: | Yes |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 40-13/16" Tall x 19-3/4" Wide x 3-1/2" Deep |
| Rough-in: | 37-3/4" Tall x 18-3/4" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 12-1/2" Length x 15-1/2" Width x 22" Height Box 2: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height Box 3: 14" Length x 13-11/16" Width x 4-3/16" Height Box 4: 23-1/4" Length x 4-1/2" Width x 44-1/2" Height |
| Shipping Weight: | 80 lbs. |
| UPC / GTIN: | 94902586984 |
| Manufacturer Model No.: | LZWSM8PK |
| Included: | Bottle Filler (LZWSM8C) Chiller (ECH8) Mounting Frame (MFWS100) Filter (EWF3000) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
In-wall recessed bottle filling station for use with EDFPBM SwirlFlo® fountains. LZWS(M)8PK shall deliver 8 GPH of 50°F drinking water at 90°F ambient and 80°F inlet water.Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.1-1.5 gpm flow rate with laminar flow to minimize splashing. Shall include the WaterSentry® Plus 3000-gallon capacity filter, certified to NSF/ANSI 42 and 53, with visual monitor to indicate when replacement is necessary. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.
