Elkay Part 1000004573 Replacement Solenoid Valve Kit for 110-120V Bottle Fillers
When your bottle filler stops dispensing water, and you have determined it's not a faulty sensor, then this is the next most likely solution. Note that this affects only the bottle filler portion of your water dispenser. There is a different one for the drinking fountain (if present).

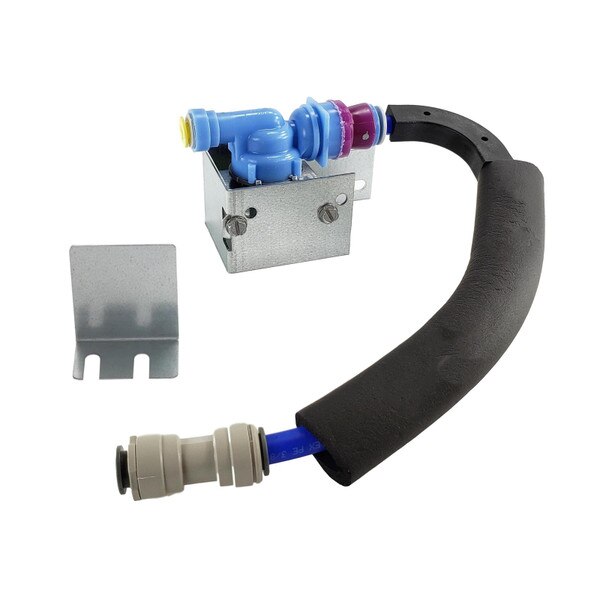

This kit includes the following:
1000004306 Solenoid Valve
28905C Solenoid Bracket
28936C Solenoid Shield
1000004565 Flow Bend Clip - 3/8" (Black)
56307C Poly Tube 3/8" x 10" Long
101461040560 Insulation Tube
70288C Screw (#10 x .37 HHSM)
(For use with 110-120V 60Hz EZ / LZ / HAC / EMABF / LMABF models)
For the 220-240V version of this part, see Elkay Part 1000004574.
| Brand: | Elkay |
| Manufacturer Model No.: | 1000004573 |
| Type: | Solenoid Valve (For BOTTLE FILLER) |
| Compatibility: | Elkay EZH2O models beginning with EZ / LZ / EMAB / LMAB Halsey Taylor Hydroboost products beginning with HTHB-HAC |
| Included: | 1000004306 Solenoid Valve 28905C Solenoid Bracket 28936C Solenoid Shield 1000004565 Flow Bend Clip - 3/8" (Black) 56307C Poly Tube 3/8" x 10" Long 101461040560 Insulation Tube 70288C Screw (#10 x .37 HHSM) |
| Overall Dimensions: | Not applicable |
| Shipping Dimensions: | 8" Length x 8" Width x 8" Height |
| Shipping Weight: | 1 lb. |
| UPC / GTIN: | 094902117324 |
| Country of Manufacure: | United States |
| Additional Comments: | This item is not the solenoid valve used in the drinking fountain portion (if present). |
