Elkay Part 2000000503 Complete Solenoid Valve Replacement Kit For EZH2O & HydroBoost BF
 | This unit supersedes the discontinued 98545C. |
All of the parts necessary to repair or replace the solenoid valve in the BOTTLE FILLER of Elkay & Halsey Taylor fountains.
Compatible with Elkay models:
EZWS-EDFP217K, EZWS-EDFPBM114K, EZWS-EDFPBM117K, EZWS-ERFP8-RF, EZWS-ERPB8-RF, EZWS-ERPBM28K, EZWS-ERPBM8K, EZWSM8K, EZWSM8PK, EZWSMDK, EZWSMDPK, LZWS-EDFP217K, LZWS-EDFPBM114K, LZWS-EDFPBM117K, LZWS-ERFP8-RF, LZWS-LRPB8-RF, LZWS-LRPBM28K, LZWS-LRPBM8K, LZWSM8K, LZWSM8P, LZWSMDK, LZWSMDPK, LZWSSM
Compatible Halsey Taylor models:
HTHB-8-NF, HTHB-8-WF, HTHB-HRF-RF, HTHB-HRFSEBP-I, HTHB-LR-NF, HTHB-LR-NF, HTHB-LR-WF, HTHB-NF, HTHB-OVL-RF, HTHB-OVLEBP-I, HTHB-OVLER-I, HTHB-OVLSEBP-I, HTHB-OVLSER-I, HTHB-WF, HTHBWF-HRF-RF, HTHBWF-HRFSEBP-I, HTHBWF-OVL-RF, HTHBWF-OVLEBP-I, HTHBWF-OVLER-I, HTHBWF-OVLSEBP-I, HTHBWF-OVLSER-I
| Brand: | Elkay |
| Manufacturer Model No.: | 2000000503 |
| Type: | Solenoid Valve Kit |
| Compatibility: | See details tab for compatible drinking fountains. |

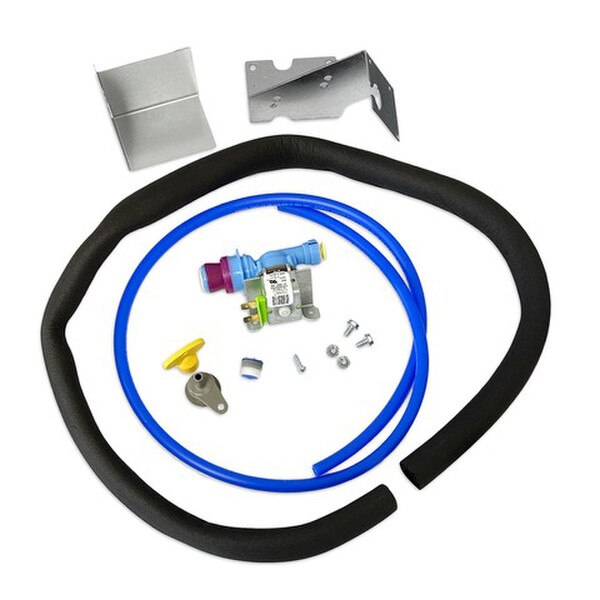

| Included: | 28905C Solenoid Bracket, Qty: 1 28936C Solenoid Shield BF - Retro, Qty: 1 36293C Solenoid Valve (110-120V), Qty: 1 56331C Aerator Connector, Qty: 1 66728C Tube - Formed, Qty: 1 70016C Nut - Hex, 10/32, Qty: 2 (Cont'd in Additional Comments) |
| Overall Dimensions: | Not published |
| Shipping Dimensions: | 9" Length x 9" Width x 9" Height |
| Shipping Weight: | 2 lbs. |
| UPC / GTIN: | 94902146003 |
| Country of Manufacture: | USA |
| Additional Comments: | 70288C Screw - #10 x .37 in., HHSM, Qty: 2 70745C Fitting - Union, 3/8 x 1/4 Tube, Qty: 1 75625C Screw - #8 x .5 in., Hi-Low 6 Lobe Pan Head, Qty: 1 P05031 Full Flow Hidden Aerator, Qty: 1 P05032 Cache TT Hidden Aerator Install Key, Qty: 1 |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
