Elkay Part 98731C Regulator Repair Kit ("Red" Spring version)
Elkay regulator repair kit with "red" spring cartridge. (The red is in quotes because the spring is no longer colored red, but it is still referred to this way.) This is the standard regulator used in many Elkay and Halsey Tayor fountains. It is intended for push button applications and requires less force to activate. For push bar models, Elkay recommends part 98732C as a bar gives more leverage to activate the valve.
| Brand: | Elkay |
| Manufacturer Model No.: | 98731C |
| Type: | Regulator Kit |
| Compatibility: | Works with Elkay models including, but not limited to: VRCGRN8WSK, LVRCGRN8WSK, VRCGRNTL8WSK, LVRCGRNTL8WSK, ENOBM28K, and ENOB28K |

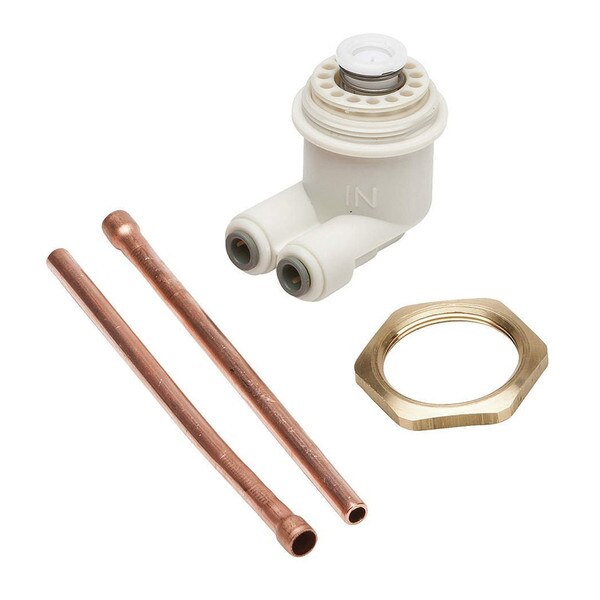

| Included: | 40045C NUT - HEX 1 5/16UN-2B UNPLATED (1) 50986C HOLDR-REGULATOR (1) 61313C REG - WITH SPRING (1) 62195C TUBE-CU 1/4X5 (1-EXP/1-P117) (2) |
| Overall Dimensions: | Regulator Only (1-1/2" Wide x 2-1/8" Tall x 2" Deep) |
| Shipping Dimensions: | 6" Length x 6" Width x 6" Height |
| Shipping Weight: | 1 lbs. |
| UPC / GTIN: | 94902764542 |
| Country of Manufacture: | USA |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
