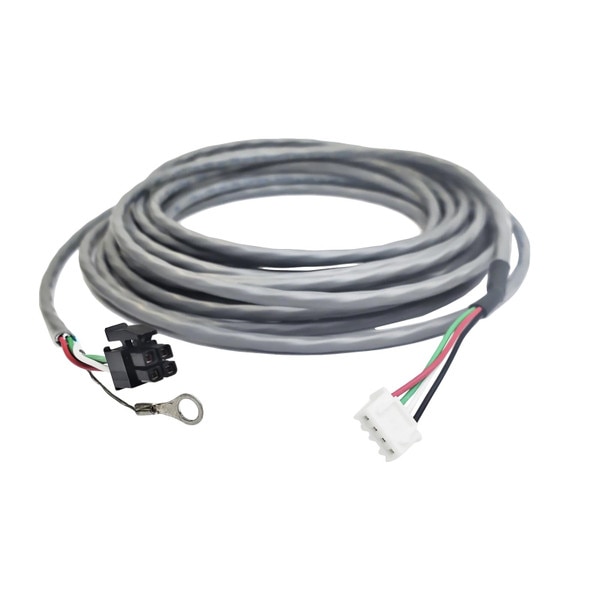

Elkay Part LKP-1000004711 18 ft. Filter Signal Wiring Harness
Primarily for use with Elkay LIV and LIV Pro units where refrigeration will be added via a remote chiller. This harness allows the filter sensing mechanism to be located next to the refrigeration unit (as opposed to where it is located with non-refrigerated units which is immediately below the bottle filler).
Note: This part is really for use in any Elkay Enhanced Filtered product where the control board automatically senses when the filter has been changed and what the capacity is. It allows the filter to be relocated from within the unit, to a remote (more convenient) location. It is not necessary for non-enhanced bottle fillers which do not auto-sense filter replacement and must be reset manually.
18 foot long extension provides plenty of flexibilty for this application.
Snap connectors provide for simple, and safe installation.
NSF rated.
Also useful for replacing a worn or damaged standard length cable.
| Brand: | Elkay |
| Manufacturer Model No.: | 1000004711 |
| Type: | Wiring Harness |
| Compatibility: | Elkay LIV models: LBWD00BKC, LBWD00WHC, LBWD06BKK, LBWD06WHK, LBWDC00BKC, LBWDC00WHC, LBWD2C00BKC, and LBWD2C00WHC. May also be used with compatible bottle filling stations where the chiller is located remotely. |
| Included: | One (1) filter signal cable |
| Overall Dimensions: | Not published |
| Shipping Dimensions: | 12" Length x 12" Width x 4" Height |
| Shipping Weight: | 2 lbs. |
| UPC / GTIN: | 94902122878 |
| Country of Manufacture: | USA |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
