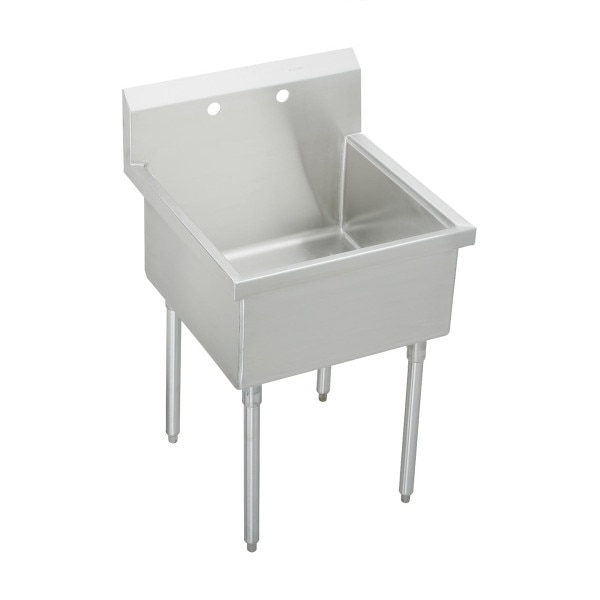

Elkay SS81242 Sturdibilt Scullery Sink, Single Compartment, No Drainboard, 27" x 27-1/2" x 14"
Elkay Sturdibilt Floor Mount Scullery Sink. Single Basin with Backsplash. No Drainboard. Overall Dimensions: 27" wide x 27-1/2" front to back x 44" tall. Features #14 gauge, type 304 stainless steel construction. Basin Dimensions: 24" wide x 24" front to back x 14" deep. Square corner welded construction. Full length 8" high backsplash with 45 degree sloped top. 1-1/2" wide sloping top channel rims. Exposed surfaces polished to a #4 architectural satin finish. Sink, supported on (4) LK251 stainless steel, 1-5/8" O.D. tubular legs, #16 gauge wall thickness. Adjustable bullet shaped feet.
14-gauge, Type 304 stainless steel
Square corner welded compartment construction
Distinctive channel rim design with 2" apron minimizes spillover
14" deep compartments
8" high, full-length backsplash with 45-degree slope to resist grime
3-1/2" drain opening

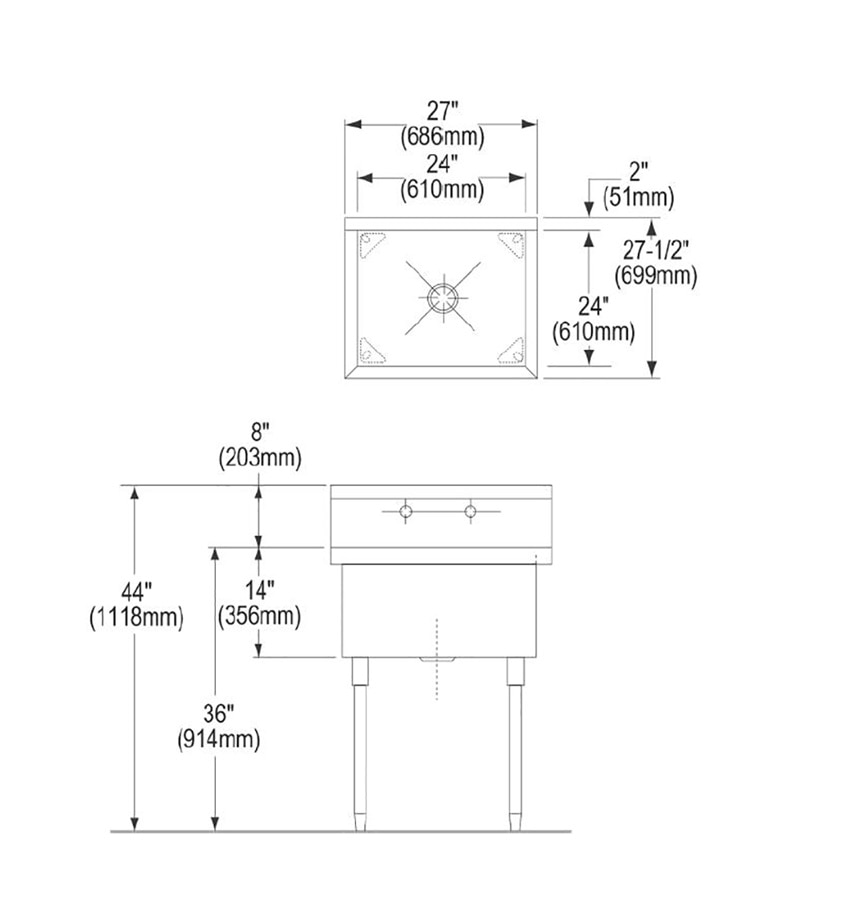

Measurement Diagram:
| Brand: | Sturdibuilt |
| Type: | Food Service & Kitchen Sinks |
| Faucet Holes: | 2 |
| Mount Type: | Floor |
| Application Type: | Foodservice, Scullery, Service + Utility |
| Mount: | Floor |
| Material: | Stainless Steel |
| Gauge: | 18 |
| Bowl Dimensions: | L: 24" W: 24" H: 14" |
| Drain Size: | 3-1/2" |
| Minimum Cabinet Size: | N/A |
| Drain Included: | No |
| Sound Deadening: | No |
| Overall Dimensions: | L: 27" W: 27-1/2" H: 14" |
| Shipping Dimensions: | L: 28-1/2" W: 29" H: 17-1/4" |
| Shipping Weight: | 80 lbs. |
| UPC / GTIN: | 94902045931 |
| Country of Manufacture: | Belgium |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Sturdibilt Stainless Steel 27" x 27-1/2" x 14" Floor Mount, Single Compartment Scullery Sink. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement. Sinks supported by (4) 16 gauge stainless steel, 1-5/8” O.D. tubular legs with bullet shaped feet adjustable up to 1”.
