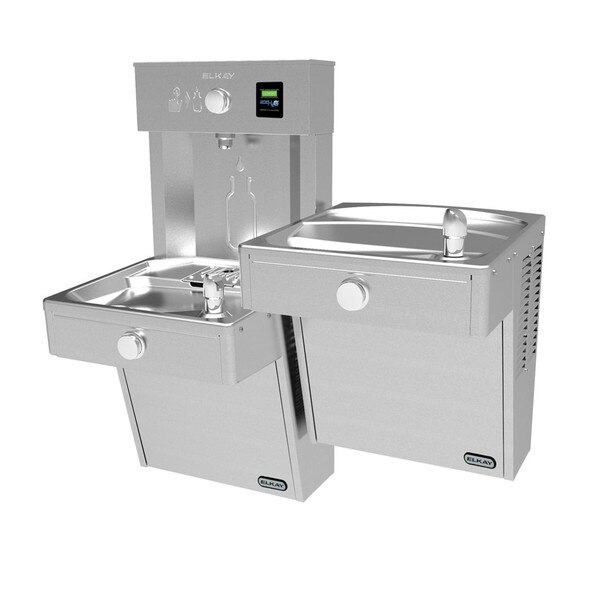

Elkay VRCTLR8WSK Wall Mount, Vandal Resistant, Refrig., Bi-level ADA Fountain (RIGHT side high)
 | This product is CERTIFIED for OUTDOOR USE! |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design.
Pushbutton activation with automatic 20-second shut-off timer on bottle filler. And the VRC models are the only Elkay refrigerated bottle filler that is certified for outdoor use.
- Ideal for heavy-use installations such as educational and indoor recreational facilities.
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
- Fill rate is 1.1 GPM.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
Certifications:

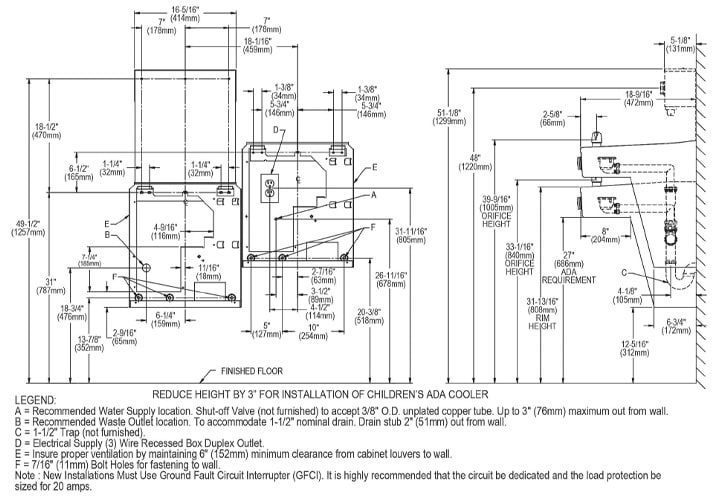

Measurement Diagram:
| Installation Location: | Indoor or Outdoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 38-13/16" Tall x 36-1/8" Width x 18-5/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 22-3/4" Length x 11-1/16" Width x 24-1/4" Height Box 2: 20-5/8" Length x 20-5/8" Width x 25-13/16" Height |
| Shipping Weight: | 118 lbs. |
| UPC / GTIN: | 94902771922 |
| Manufacturer Model No.: | VRCTLR8WSK |
| Included: | Water Cooler (VRCTLR8WSC) Bottle Filler (VRCWS) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Vandal-Resistant Bottle Filling Station, & Bi-Level Reverse Cooler, Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Green Ticker™, Laminar Flow, Real Drain, Vandal Resistant. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
